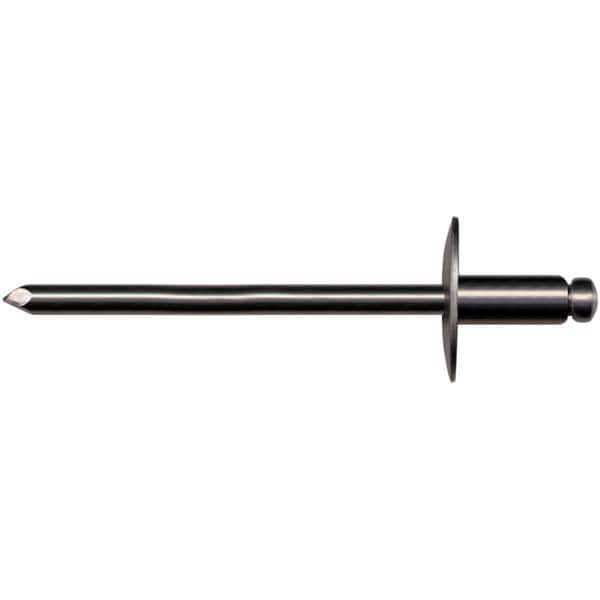

Blind Rivets; Rivet Type: Open End; Head Type: Button; Head Diameter: 0.375 in; Size Code: 44; Minimum Grip: 0.188 in; Rivet Material: Steel; Mandrel Material: Steel; Maximum Grip: 0.25 in; Minimum Grip (Decimal Inch): 0.1880; Minimum Hole Diameter: 0.129
Item #: 10332435
Brand: Marson
Model #: M70119
Product Specifications
| Rivet Type | Open End |
| Head Type | Button |
| Head Diameter | 0.375 in |
| Size Code | 44 |
| Minimum Grip | 0.188 in |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Maximum Grip | 0.25 in |
| Minimum Grip (Decimal Inch) | 0.1880 |
| Minimum Hole Diameter | 0.129 in |
| Maximum Hole Diameter | 0.133 in |
| Maximum Grip (Decimal Inch) | 0.2500 |
| Body Material | Steel |
| Head Diameter (Inch) | 0.375 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (mm) | 0.133 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Drill Bit Size | #30 |
| Head Height | 0.0400 in |
| Tensile Strength | 410.0 lb |
| Standards | IFI 114 Grade 30 |
| Drill Size (Wire) | #30 |
| Body Diameter (Decimal Inch) | 0.125 in |
| Shear Strength (Lb.) | 305 |
| Tensile Strength (Lb.) | 410 |
| Fastener Standard | IFI 114 Grade 30 |
| Head Height (Decimal Inch) | 0.0400 |
