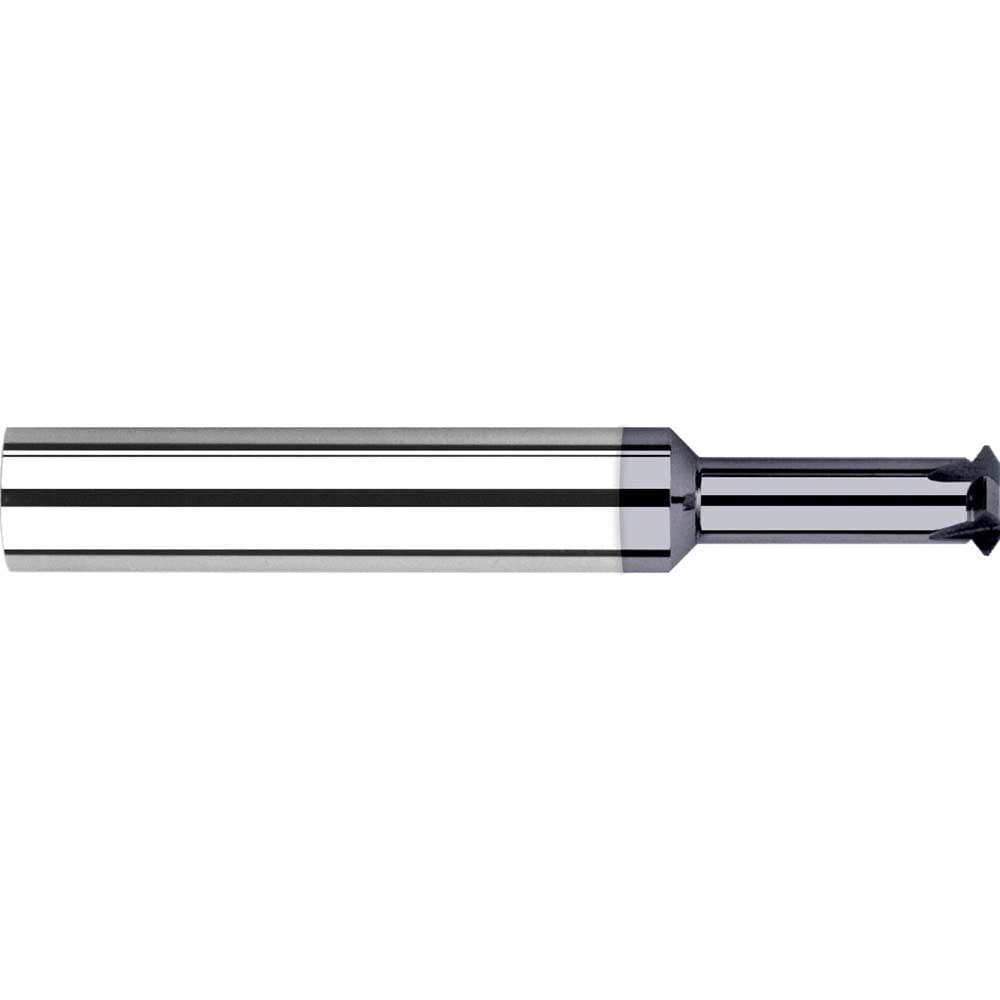

Single Profile Thread Mills; Maximum Threads Per Inch: 32; Minimum Pitch (Decimal Inch): 0.0500; Minimum Pitch (mm): 0.05; Minimum Threads Per Inch: 20; Maximum Pitch (Decimal Inch): 0.0179; Material: Solid Carbide; Thread Type: Internal, External
Item #: 91616862
Brand: Harvey Tool
Model #: 757350-C6
Product Specifications
| Maximum Threads Per Inch | 32 |
| Minimum Pitch (Decimal Inch) | 0.0500 |
| Minimum Pitch (mm) | 0.05 |
| Minimum Threads Per Inch | 20 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 1/4-20 - 1/4-32 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Cutting Diameter (Decimal Inch) | 0.1800 |
| Minimum Nominal Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 2.5 |
| Overall Length (Inch) | 2-1/2 |
| Neck Diameter (Decimal Inch) | 0.1220 |
| Neck Length (Decimal Inch) | 0.3750 |
| Series | Thread Milling Cutters - Single Form - UN Threads - For Hardened Steels |
| Thread Standard | Acme |
| Number Of Flutes | 5 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0360 |
| Coating/Finish | AlTiN Nano |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
