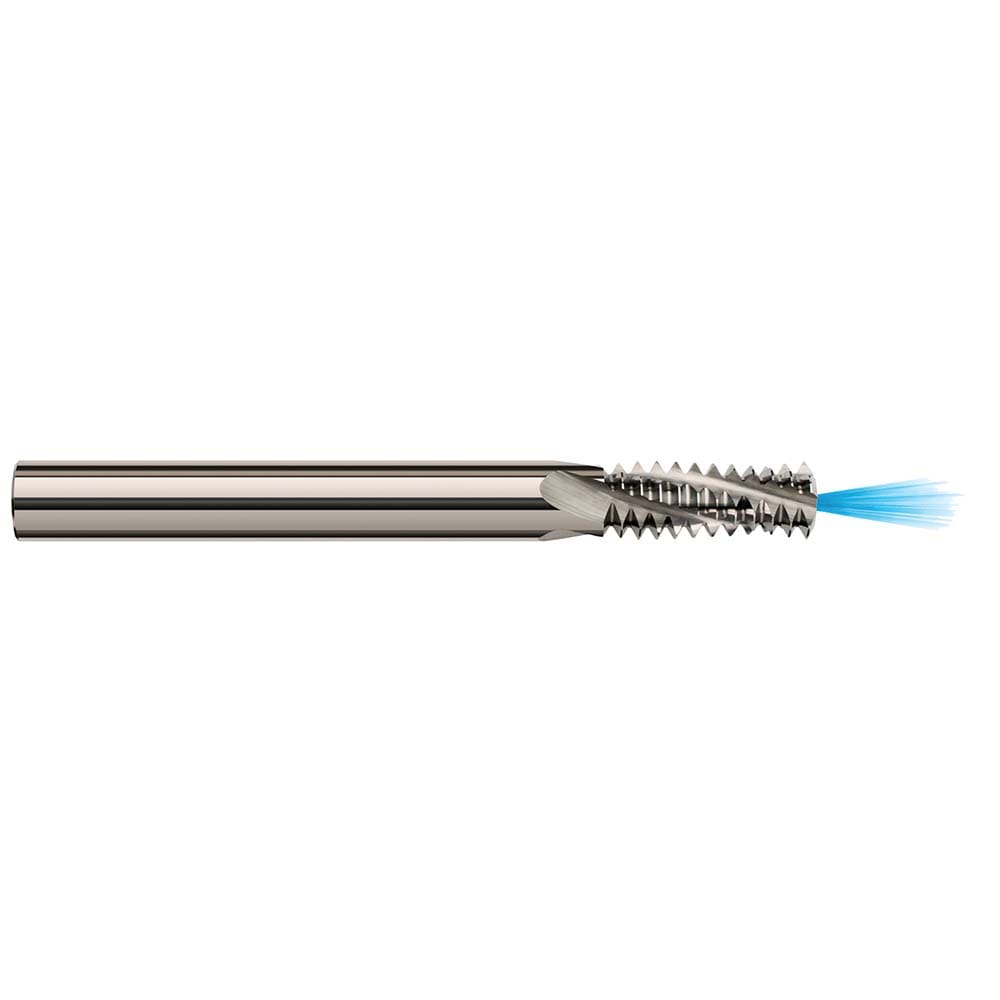

Helical Flute Thread Mill: 4-40, Internal & External, 3 Flute, 0.1250" Shank Dia, Solid Carbide
Item #: 91614735
Brand: Harvey Tool
Model #: 17316
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 4-40 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Cutting Diameter (Decimal Inch) | 0.0850 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1750 |
| Shank Length (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 1.5000 |
| Thread Standard | UN |
| Flute Direction | Right Hand |
| Series | Thread Milling Cutters - Multi-Form - Coolant-Through - UN Threads |
| Number Of Flutes | 3 |
| Coating/Finish | Uncoated |
| Coolant Through | Yes |
| Thread Length (Decimal Inch) | 0.1750 |
| Teeth Per Inch | 40 |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
