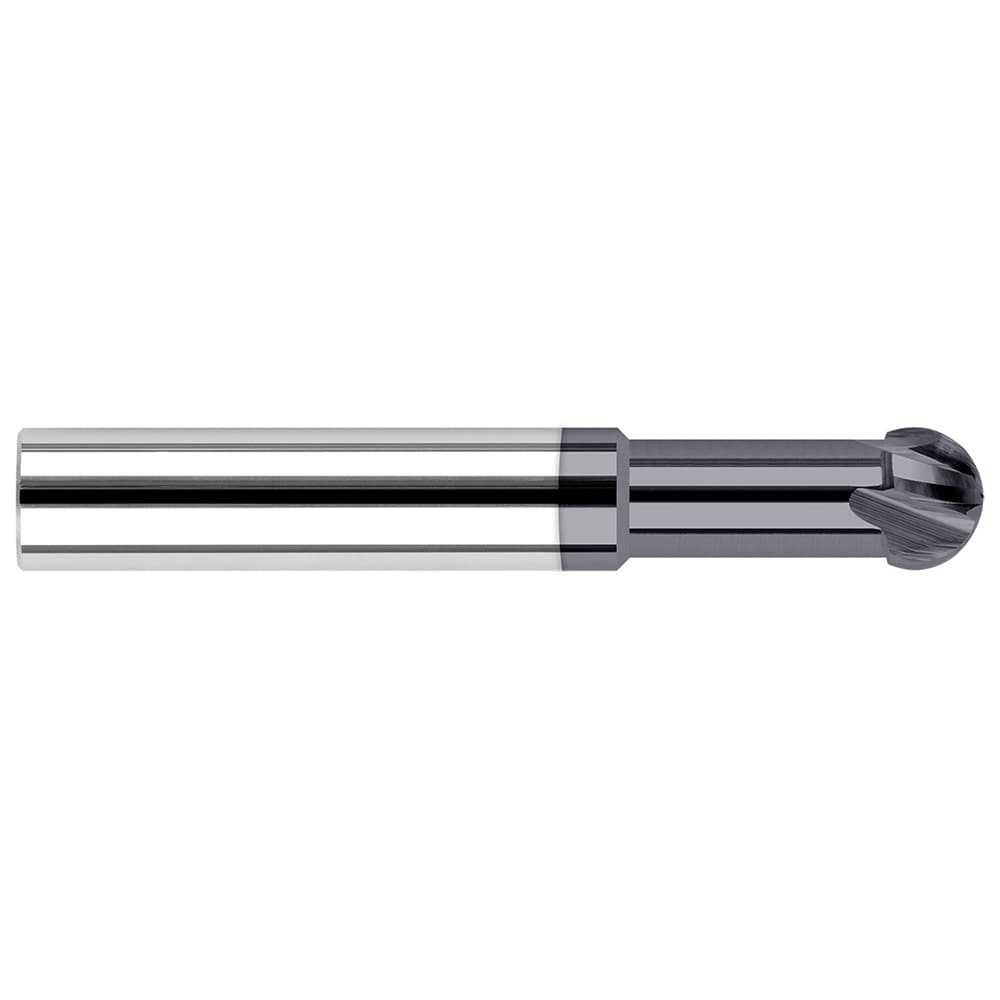

Undercutting End Mills; Mill Diameter (Decimal Inch): 0.0930; Mill Diameter (Inch): 3/32; Length Of Cut (Decimal Inch - 4 Decimals): 0.0620; Length of Cut (Inch): 1/16; Overall Length (Inch): 1-1/2; Radius: 0.0460; Number Of Flutes: 2; Neck Length (Decima
Item #: 91614198
Brand: Harvey Tool
Model #: 722406-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0930 |
| Mill Diameter (Inch) | 3/32 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0620 |
| Length of Cut (Inch) | 1/16 |
| Overall Length (Inch) | 1-1/2 |
| Radius | 0.0460 |
| Number Of Flutes | 2 |
| Neck Length (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.0700 |
| Coating/Finish | AlTiN |
| Helix Angle | 30 |
| Shank Diameter (Inch) | 1/8 |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Wrap Angle (Degrees) | 270 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
