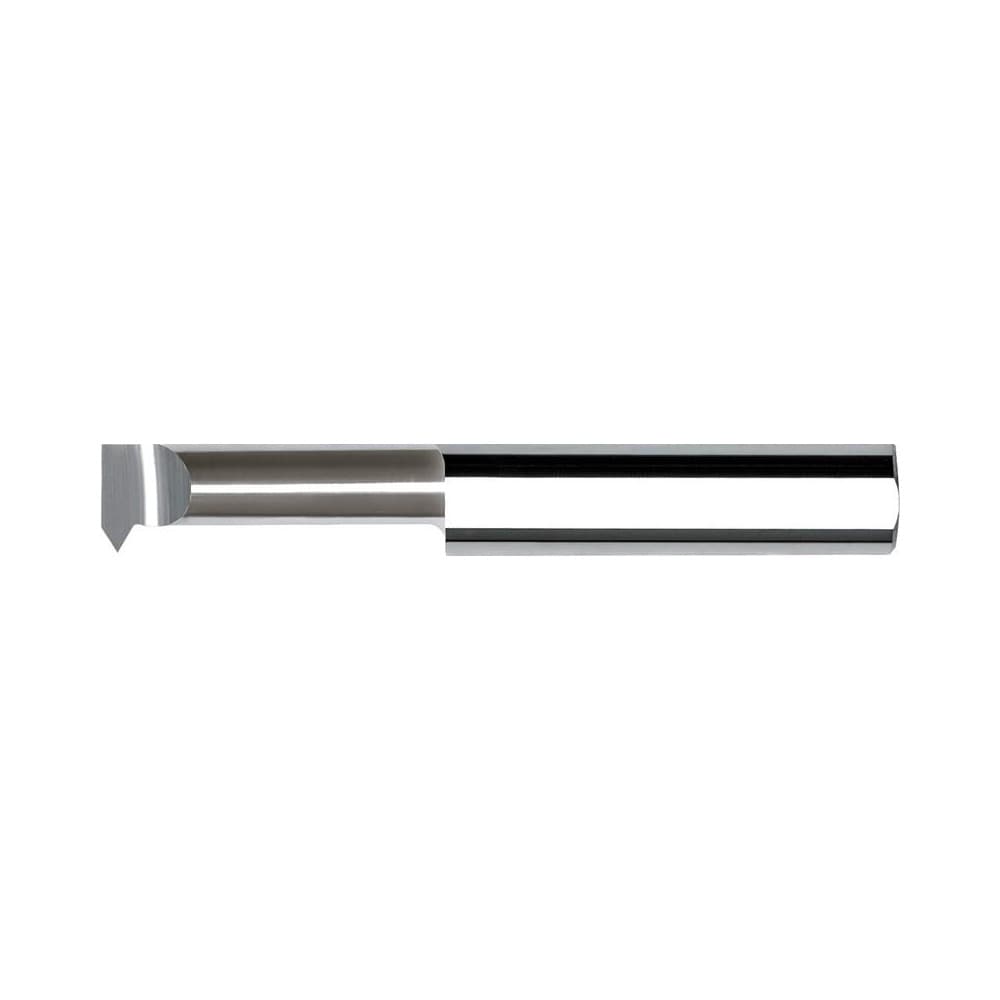

Single Point Theading Tool: 0.49" Min Thread Dia, 8 to 24 TPI, 1" Cut Depth, Internal, Solid Carbide
Item #: 91402776
Brand: Made in USA
Model #: 30-1542
Product Specifications
| Thread Type | Internal |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.4900 |
| Cutting Depth (Decimal Inch) | 1.0000 |
| Maximum Threads Per Inch | 24 |
| Minimum Threads Per Inch | 8 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
