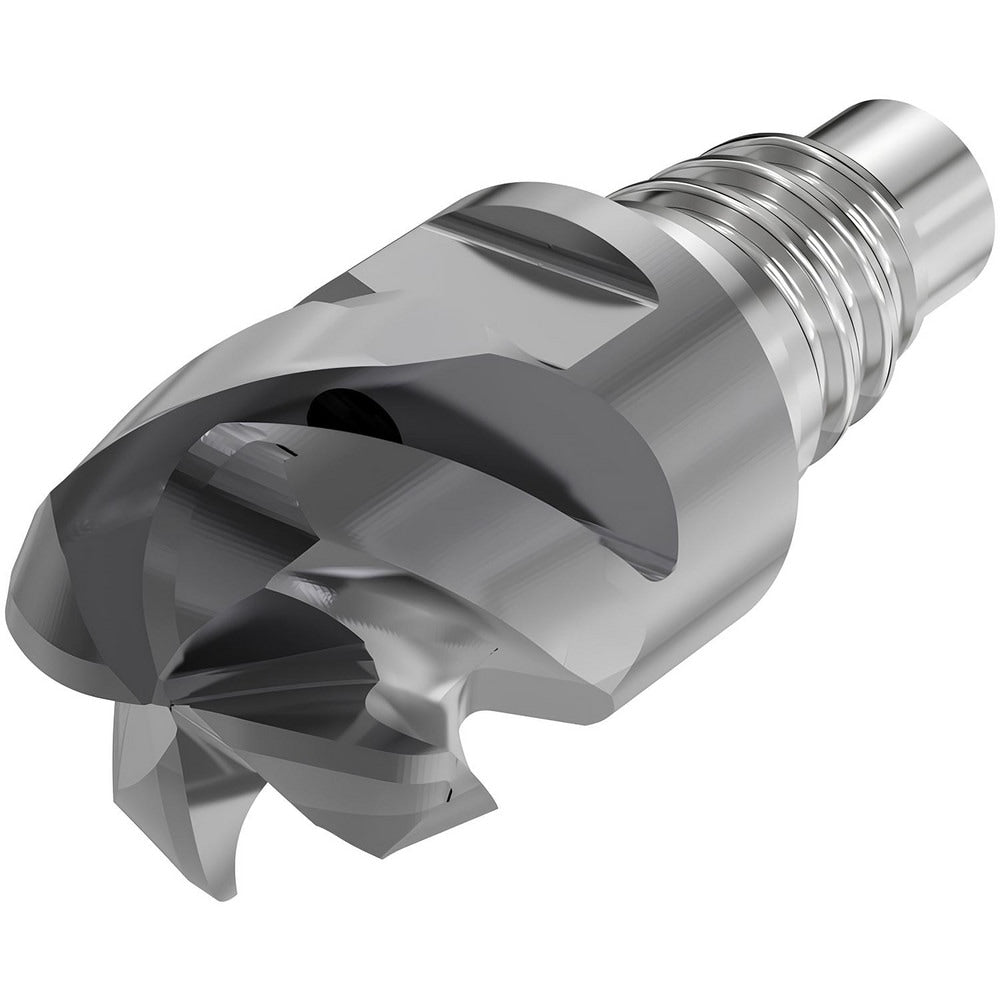

Brand: Seco / Part #: 10137976
Item #: 40068355
Brand: Seco
Model #: 10137976
Product Specifications
| Milling Tip Type | High Feed |
| Milling Tip Style | XHF |
| Maximum Depth of Cut (mm) | 1.00 |
| Cutting Diameter (mm) | 15.59 |
| Tool Material | HMG |
| Depth of Cut (mm) | 1.00 |
| Manufacturer Grade | SIRA |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | XHF |
| Coating Process | PVD |
| Corner Radius (mm) | 2.03 |
| Cutting Width (mm) | 15.590 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Milling Tip Full Description | XHF580E16.625D1HZ4A |
| Extension From Holder (mm) | 18.70 |
| Thread Size | E16 |
| Lead Angle | 90 |
| Chamfer Angle | 0.000 |
| Insert Size | 5/8 in |
| Length of Cut (mm) | 1.0000 |
| Helix Angle | 50 |
| Coolant Through | Yes |
| Mill Diameter (mm) | 15.59 |
| Overall Length (mm) | 35.6000 |
| Mill Diameter (Decimal Inch) | 0.6136 |
| Projection Length (Decimal Inch) | 0.7362 |
| Included Angle Degree | 90 |
| Coating/Finish | SIRON-A |
| Number Of Flutes | 4 |
| Length | 18.70 |
