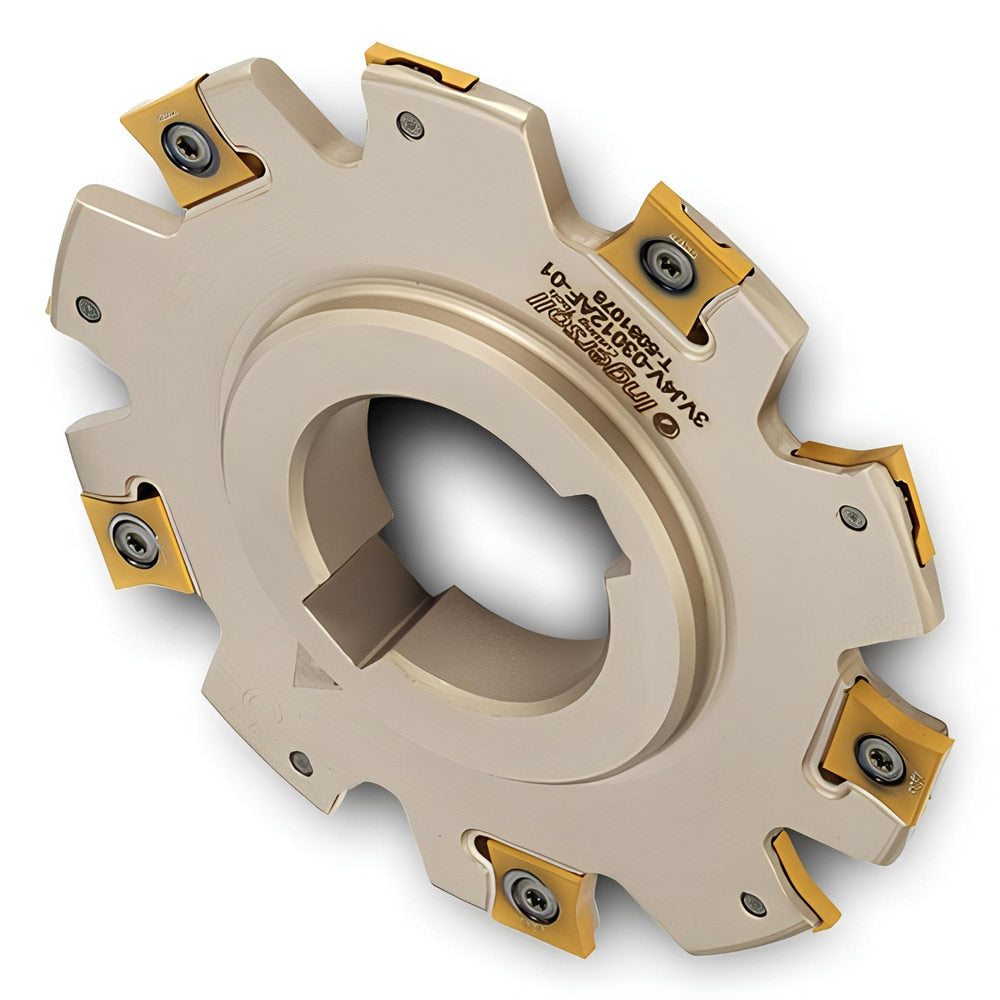

Indexable Slotting Cutter: 5/16" Cutting Width, 5" Cutter Dia, Arbor Connection, 1.5100" Depth of Cut, Neutral
Item #: 98631054
Brand: Ingersoll Cutting Tools
Model #: 2922523
Product Specifications
| Connection Type | Arbor |
| Cutting Width (Inch) | 5/16 |
| Maximum Depth of Cut (Decimal Inch) | 1.5100 |
| Hole Diameter (Inch) | 1-1/4 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | IXH |
| Compatible Insert Size Code | 413 |
| Tooth Type | Staggered |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3VJ4V |
| Toolholder Style | 3VJ4V |
| Hub Diameter (Decimal Inch) | 1.8700 |
| Hub Diameter (mm) | 47.50 |
| Keyway Width (Decimal Inch) | 0.3100 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.3120 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 127.00 |
| Cutter Body Width (Decimal Inch) | 0.3120 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3VJ4V-05031AG-01 |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Complete Insert Compatibility | IXH413 |
| Coated | Coated |
