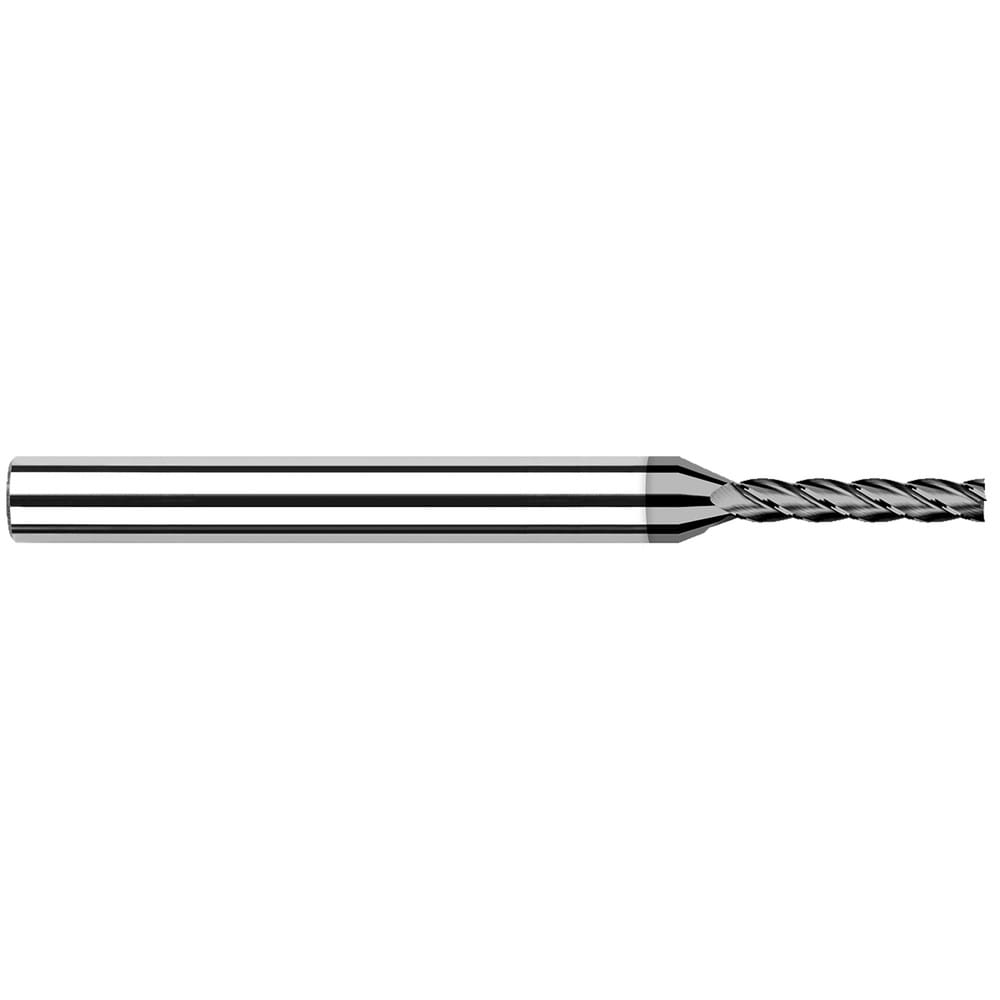

Square End Mill: 3/16" Dia, 1" LOC, 4 Flute, Solid Carbide
Item #: 86951761
Brand: Harvey Tool
Model #: 741912
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Single Or Double End | Single |
| Coating/Finish Family | CVD Diamond |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; CFRP Materials |
| Primary Workpiece Material Code | C; N |
| Coating/Finish | CVD Diamond |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
