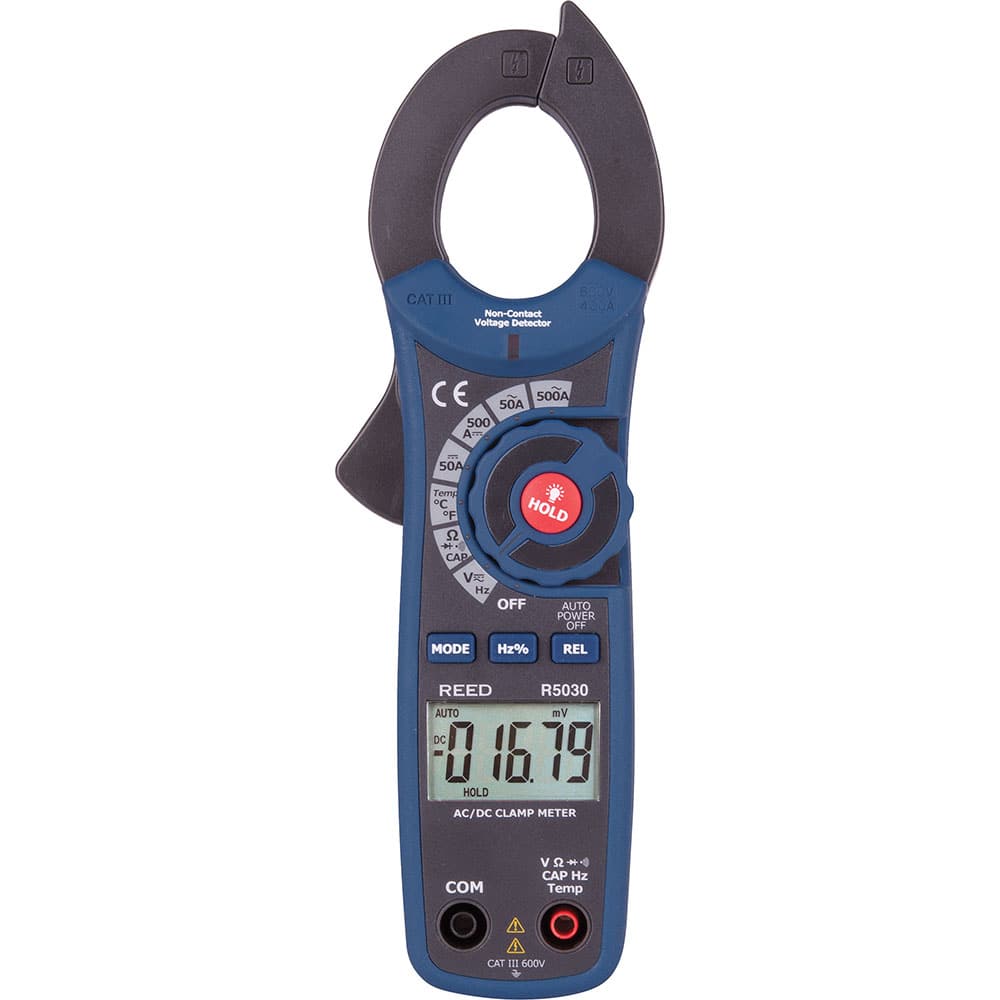

REED Instruments - Clamp Meters; Clamp Meter Type: Auto Ranging ; Measures: Capacitance; Continuity; Current; Diode Test; Duty Cycle; Frequency; Resistance; Temperature; Voltage ; Jaw Style: Clamp On ; Jaw Capacity (Decimal Inch): 1.2000 ; CAT Rating: CA
Item #: 10164234
Brand: REED Instruments
Model #: R5030
Product Specifications
Clamp Meters; Clamp Meter Type: Auto Ranging ; Measures: Capacitance; Continuity; Current; Diode Test; Duty Cycle; Frequency; Resistance; Temperature; Voltage ; Jaw Style: Clamp On ; Jaw Capacity (Decimal Inch): 1.2000 ; CAT Rating: CAT III ; Maximum DC Voltage: 1000
| Clamp Meter Type | Auto Ranging |
| Measures | Capacitance; Continuity; Current; Diode Test; Duty Cycle; Frequency; Resistance; Temperature; Voltage |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 1.2000 |
| CAT Rating | CAT III |
| Maximum DC Voltage | 1000 |
| Maximum AC Voltage | 750 |
| Maximum DC Current (A) | 500 |
| Maximum AC Current (A) | 500 |
| Maximum Resistance (Ohms) | 500 |
| Maximum Resistance (Megohms) | 50 |
| Temp Measurement Range (C) | -100 - 1000 |
| Temp Measurement Range (F) | -148 - 1832 |
| Temp Measurement Range w/Included Probe (F) | -40 - 482 |
| Temp Measurement Range w/Included Probe (C) | -40 - 250 |
| Maximum Capacitance (Microfarads) | 500.00 |
| Maxium Capacitance (mF) | 5.000 |
| Display Type | 5 digit LCD |
| AC Wave Measurement | True RMS |
| Includes | Test Leads; Thermocouple Wire Probe; Thermocouple Adapter; Batteries; Soft Carrying Case |
| Frequency | 10kHz |
| Counts | 50000 |
| Standards Met | CE |
| PSC Code | 6625 |
