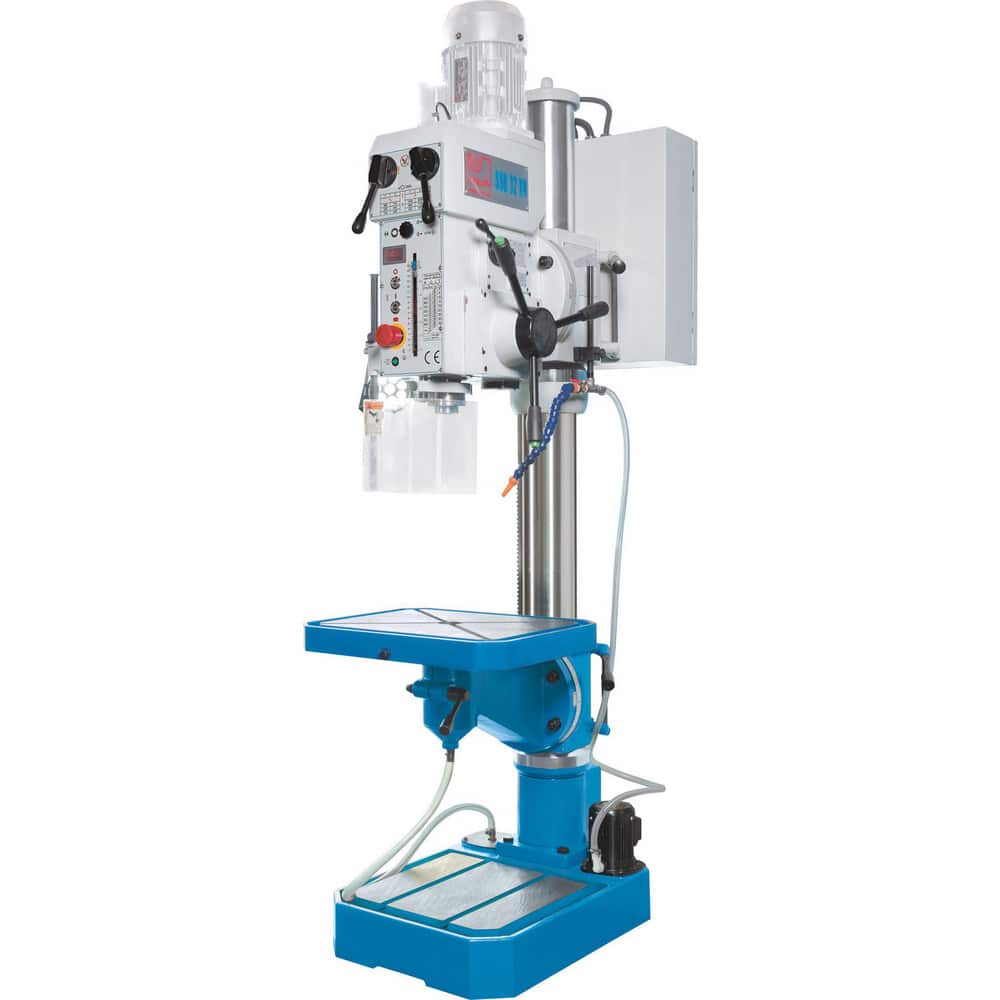

Floor & Bench Drill Presses; Drive Type: Geared Head; Stand Type: Floor; Swing Distance: 26 in; Machine Type: Drill Press; Spindle Speed Control: Geared Head; Phase: 3; Spindle Taper Size: 4MT; Spindle Taper Size: Morse Taper 4; Horse Power: 2; Minimum Sp
Item #: 10066413
Brand: Knuth
Model #: 162332
Product Specifications
| Drive Type | Geared Head |
| Stand Type | Floor |
| Swing Distance | 26 in |
| Machine Type | Drill Press |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Spindle Taper Size | 4MT |
| Spindle Taper Size | Morse Taper 4 |
| Horse Power | 2 |
| Minimum Spindle Speed | 125 |
| Maximum Spindle Speed | 3030 |
| Minimum Spindle Speed (RPM) | 125.00 |
| Maximum Chuck Capacity | 0.51 in |
| Number of Spindle Speeds | variable |
| Number Of Spindle Speeds | 12 |
| Spindle To Column Distance | 13 |
| Spindle to Column Distance (Decimal Inch) | 13.0000 |
| Spindle to Column Distance (mm) | 330.20 |
| Spindle to Column Distance (Inch) | 13 |
| Spindle to Table Distance (Inch) | 25 |
| Spindle to Table Distance (mm) | 635.00 |
| Spindle Travel Length | 6 |
| Spindle to Table Distance (Decimal Inch) | 25.0000 |
| Spindle Travel Length (Decimal Inch) | 6.0000 |
| Spindle To Table Distance | 25 |
| Spindle Travel Length (Inch) | 6 |
| Column Diameter | 5 |
| Spindle Travel Length (mm) | 152.40 |
| Column Diameter (mm) | 127.00 |
| Column Diameter (Inch) | 5 |
| Column Diameter (Decimal Inch) | 5.0000 |
| Drilling Capacity in Steel (Inch) | 1.26 |
| Drilling Capacity in Steel (mm) | 32.00 |
| Drilling Capacity in Cast Iron (Inch) | 1.51 |
| Drilling Capacity in Cast Iron (mm) | 38.35 |
| Drilling Capacity In Steel | 1.26 |
| Drilling Capacity In Cast Iron | 1.51 |
| Table Tilt Angle | 45 |
| Radial Head | No |
| Table Length (mm) | 508.00 |
| Table Length (Decimal Inch) | 20.0000 |
| Table Length | 20.000 |
| Table Width | 17.0000 |
| Voltage | 230 (Pre-Wired 230) |
| Voltage | 230 |
| Horsepower | 2 |
| Base Length (Inch) | 34 |
| Base Width | 60 |
| Base Length | 34.0000 |
| Base Width (Inch) | 20 |
| Motor Enclosure Type | Open Drip-Proof (ODP) |
| Overall Height | 78 |
| Overall Length | 34.00 |
| Overall Depth | 20 |
 | |
| MSC Part # | 10066413 |
| Mfr Part # | 162332 |
| Country of OriginCountry of Origin is subject to change | China |
