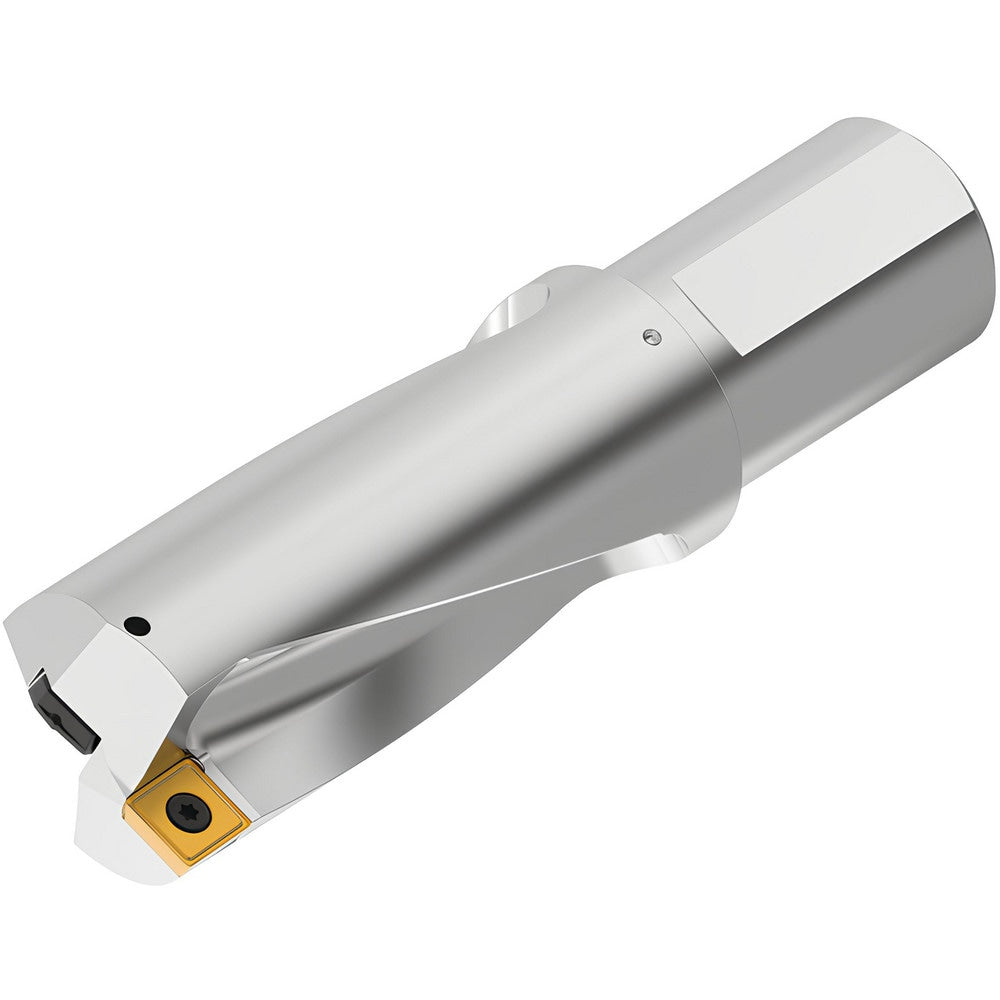

Indexable Insert Drill: DFPR490R2WB50M, 50.00 mm Max Dia, 98.00 mm Max Depth, 2xD, 50.00 mm Shank Dia
Item #: 02603652
Brand: Kennametal
Model #: 7030581
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 50.00 |
| Maximum Drill Depth (mm) | 98.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 170508; 150508 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DFPR |
| Flute Length (mm) | 98.00 |
| Body Length | 127.00 |
| Shank Length (mm) | 80.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 17.30x5.20; 15.85x5.20 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR170508__I; DFPR150508__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M5-0.8x13T20 |
| Coolant Through | Yes |
