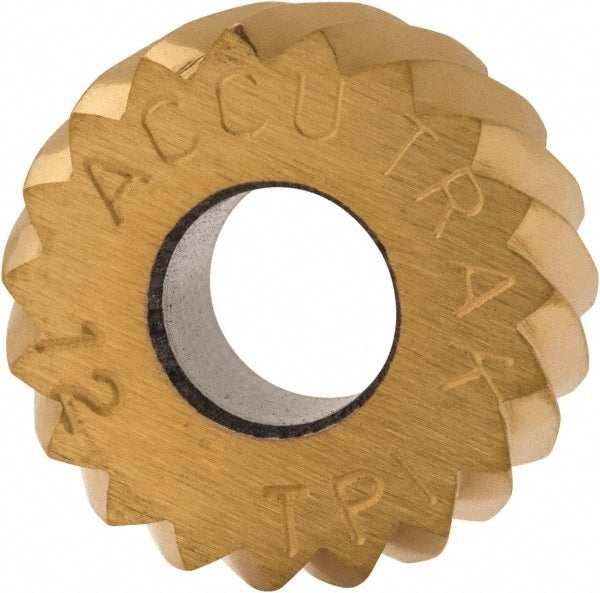

Convex Knurl Wheel: 5/8" Dia, 90 ° Tooth Angle, 12 TPI, Diagonal, Cobalt
Item #: 64817539
Brand: Made in USA
Model #: GKRV212
Product Specifications
| Knurl Shape | Convex |
| Tooth Pattern | Diagonal |
| Pattern | Right-Hand Diagonal |
| Form Or Cut Type | Form |
| Material | Cobalt |
| Knurl Diameter (Decimal Inch) | 0.6250 |
| Knurl Diameter (Inch) | 5/8 |
| Face Width (mm) | 6.35 |
| Face Width (Inch) | 1/4 |
| Hole Diameter (Inch) | 1/4 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Pitch System | Circular |
| Pitch (TPI) | 12 |
| Pitch (mm) | 2.12 |
| Included Tooth Angle | 90 |
| Finish | Titanium Nitride |
| Helix Angle | 30 |
| Knurl Series | GKV |
| UNSPSC Code | 23242118 |
| Knurl Shape | Convex |
| Tooth Pattern | Diagonal |
| Pattern | Right-Hand Diagonal |
| Form Or Cut Type | Form |
| Material | Cobalt |
| Knurl Diameter (Decimal Inch) | 0.6250 |
| Knurl Diameter (Inch) | 5/8 |
| Face Width (mm) | 6.35 |
| Face Width (Inch) | 1/4 |
| Hole Diameter (Inch) | 1/4 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Pitch System | Circular |
| Pitch (TPI) | 12 |
| Pitch (mm) | 2.12 |
| Included Tooth Angle | 90 |
| Finish | Titanium Nitride |
| Helix Angle | 30 |
| Knurl Series | GKV |
| UNSPSC Code | 23242118 |
| MSC Part # | 64817539 |
| Mfr Part # | GKRV212 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
