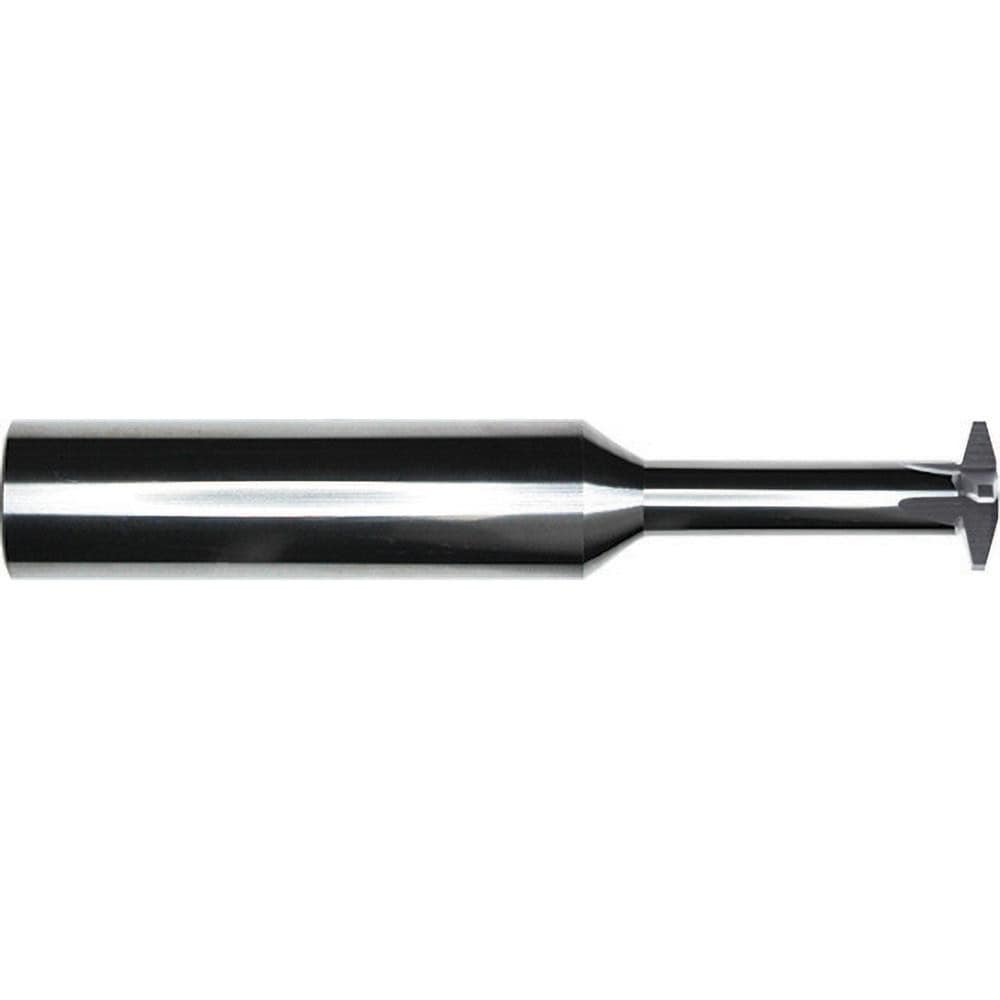

Single Profile Thread Mills; Maximum Threads Per Inch: 10; Minimum Pitch (Decimal Inch): 0.0625; Minimum Threads Per Inch: 16; Maximum Pitch (Decimal Inch): 0.1000; Material: Solid Carbide; Thread Type: Internal
Item #: 03225414
Brand: Internal Tool
Model #: 135-4015-C
Product Specifications
| Maximum Threads Per Inch | 10 |
| Minimum Pitch (Decimal Inch) | 0.0625 |
| Minimum Threads Per Inch | 16 |
| Maximum Pitch (Decimal Inch) | 0.1000 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Thread Size | 1/2-10 |
| Thread Depth (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (Decimal Inch) | 0.3200 |
| Length of Cut (Inch) | 1-1/4 |
| Minimum Nominal Diameter (Inch) | 0.3200 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Material Grade | Micrograin |
| Neck Length (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 1.7500 |
| Shank Length (Inch) | 1-3/4 |
| Series | 135 |
| Thread Standard | Acme |
| Number Of Flutes | 4 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Coating/Finish | AlTiN |
| UNSPSC Code | 23242117 |
