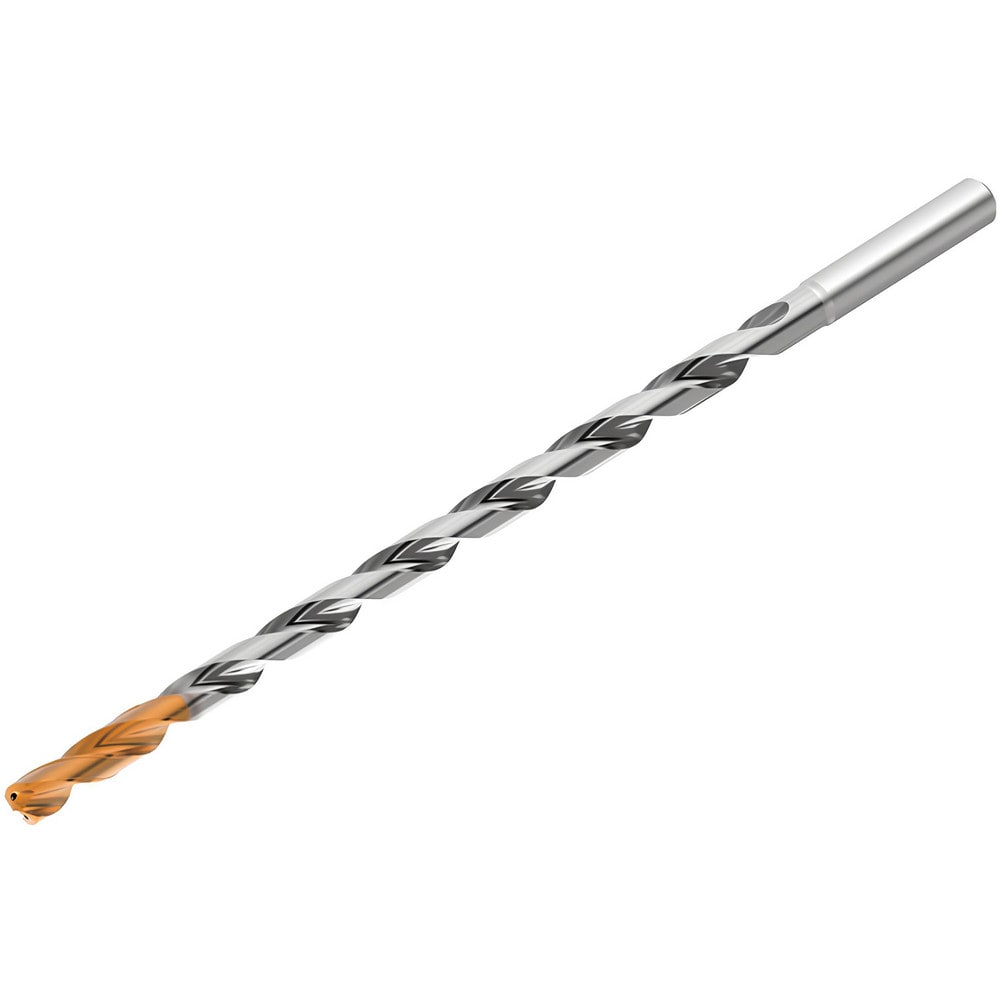

Extra Length Drill Bit: 0.2047", 135 °, Solid Carbide
Item #: 67143982
Brand: Kennametal
Model #: 7081744
Product Specifications
| Drill Bit Size (mm) | 5.20 |
| Overall Length (mm) | 173.0000 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiAlN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Flute Length (mm) | 127.00 |
| Point Type | Chisel Point |
| Series | HPR |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Point Length (mm) | 1.74 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (mm) | 36.000 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (mm) | 114.00 |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 5.20 |
| Overall Length (mm) | 173.0000 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiAlN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Flute Length (mm) | 127.00 |
| Point Type | Chisel Point |
| Series | HPR |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Point Length (mm) | 1.74 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (mm) | 36.000 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (mm) | 114.00 |
| UNSPSC Code | 23241637 |
| MSC Part # | 67143982 |
| Mfr Part # | 7081744 |
| Country of Origin Country of Origin is subject to change | Germany |
