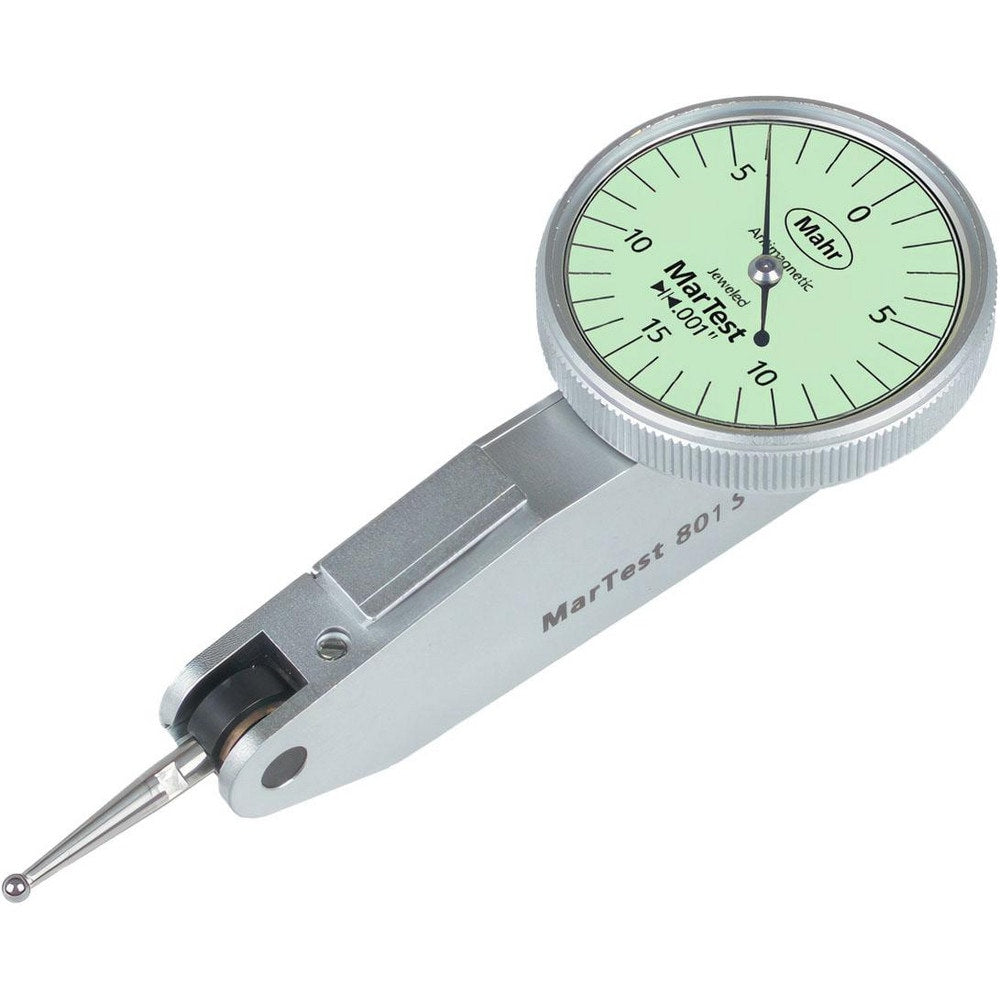

Horizontal Dial Test Indicator: 0.0150" Max, 0-15-0 Dial Reading, 0.001000" Accuracy
Item #: 09685108
Brand: Mahr
Model #: 4305960
Product Specifications
| Minimum Measurement (Decimal Inch) | -0.0150 |
| Maximum Measurement (Decimal Inch) | 0.0150 |
| Dial Reading | 0-15-0 |
| Accuracy (Decimal Inch) | 0.001000 |
| Indicator Style | Horizontal |
| Bearing Type | Ball |
| Dial Diameter (Inch) | 1-1/8 |
| Dial Color | Green |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Standards | Factory Standard; DIN 2270 |
| Mount Type | Dovetail |
| Attachments | Yes |
| Number of Contact Points Included | 1 |
| Contact Point Swivel Angle | 110 |
| Features | Ball Bearing Mounted; Mineral Glass Viewing Panel; Matt Chrome-Plated; Sealed; Automatic Adjustment; Friction Clutch Overload Protection; High-Contrast Dial Face; Anti-Magnetic Model; Shockproof Measuring Mechanism |
| Contact Point Length (Decimal Inch) | 0.5700 |
| Contact Point Length (mm) | 14.50 |
| Ball Diameter (mm) | 2.00 |
| Ball Diameter (Decimal Inch) | 0.0787 |
| Range Per Revolution (Decimal Inch) | 0.0300 |
| Style | Horizontal |
| Contents | 2 mm Stylus; 800a3/8 Mounting Shaft; Case; Instruction Manual; Spanner |
| UNSPSC Code | 41111630 |
