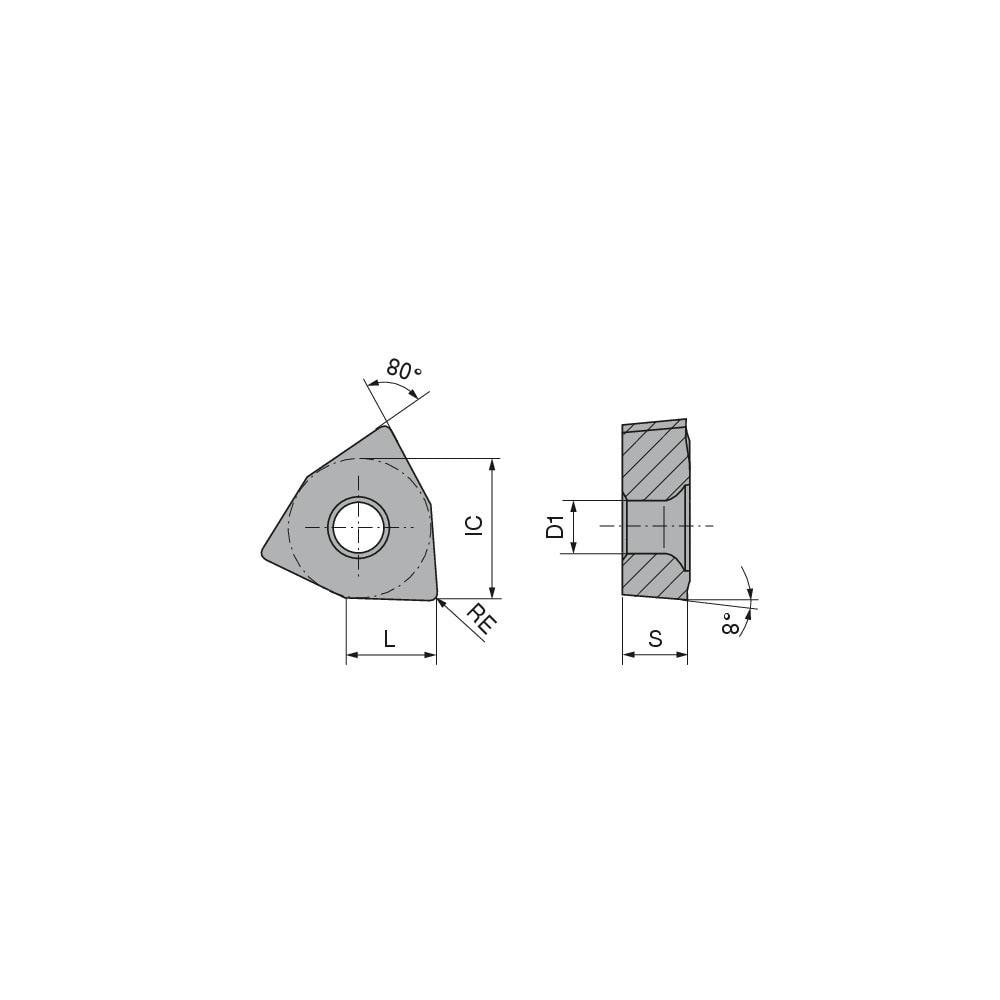

Turning Insert: WNMU4442EN-XU CTCK110, Carbide
Item #: 26294447
Brand: Ceratizit
Model #: 7042301800
Product Specifications
| ANSI Insert Code | WNMU442 |
| ISO Insert Code | WNMU080608 |
| Relief Angle | 0 |
| Insert Style | WNMU |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | CTCK110 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | WNMU |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3386 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | WNMU 080608EN-XU CTCK110 |
| Chip Breaker | XU |
| ANSI Size Code | 442 |
| ISO Size Code | 080608 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 442 |
