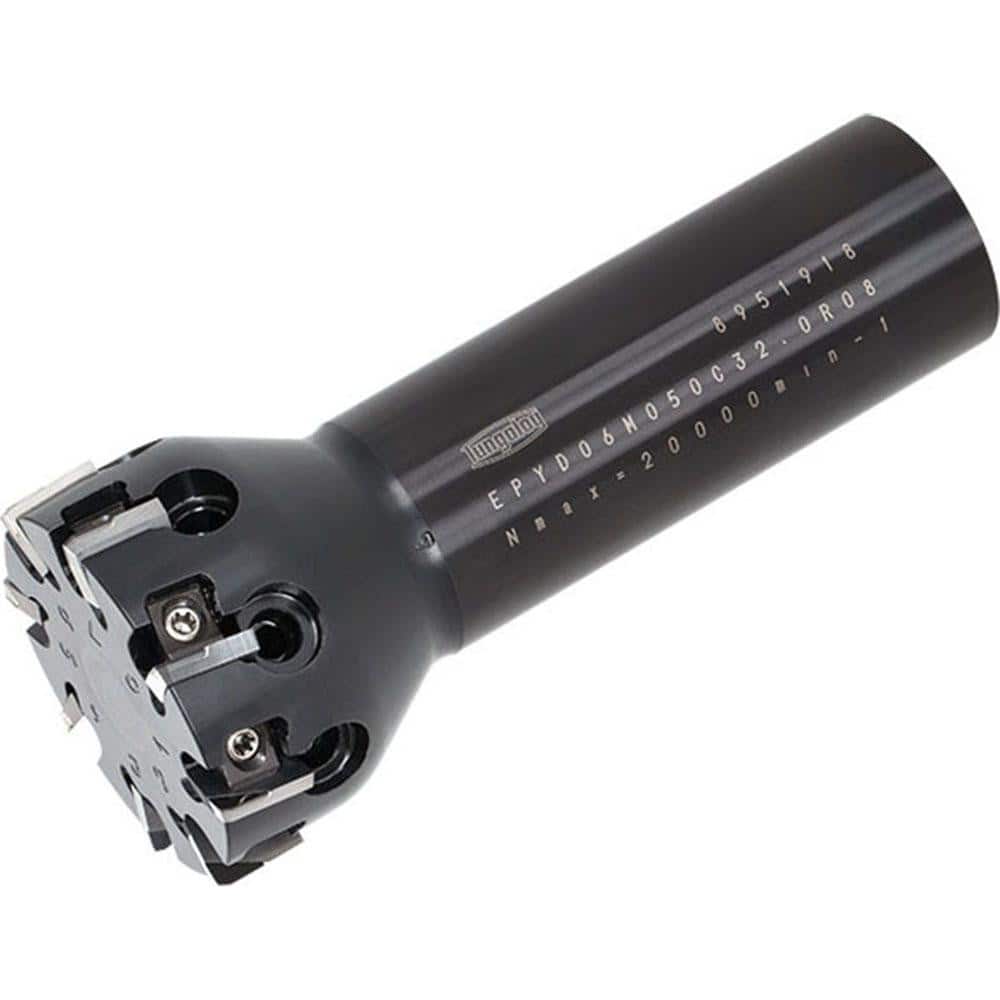

Indexable Square-Shoulder End Mill: EPYD06U2.00C1.25R08, 2.0790'' Cut Dia, 0.1770'' Max Depth of Cut, 1.2500'' Shank Dia, Straight Shank Uses 8, Normal Pressure,
Item #: 09997883
Brand: Tungaloy
Model #: 6782257
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0790 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Cutter Style | EPYD |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Wedge |
| Overall Length (Decimal Inch) | 4.5000 |
| Tool Material | Steel |
| Series | EPYD |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.9250 |
| Head Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 4.5000 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 8 |
| Usable Length (Decimal Inch) | 4.5000 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Normal Pressure |
