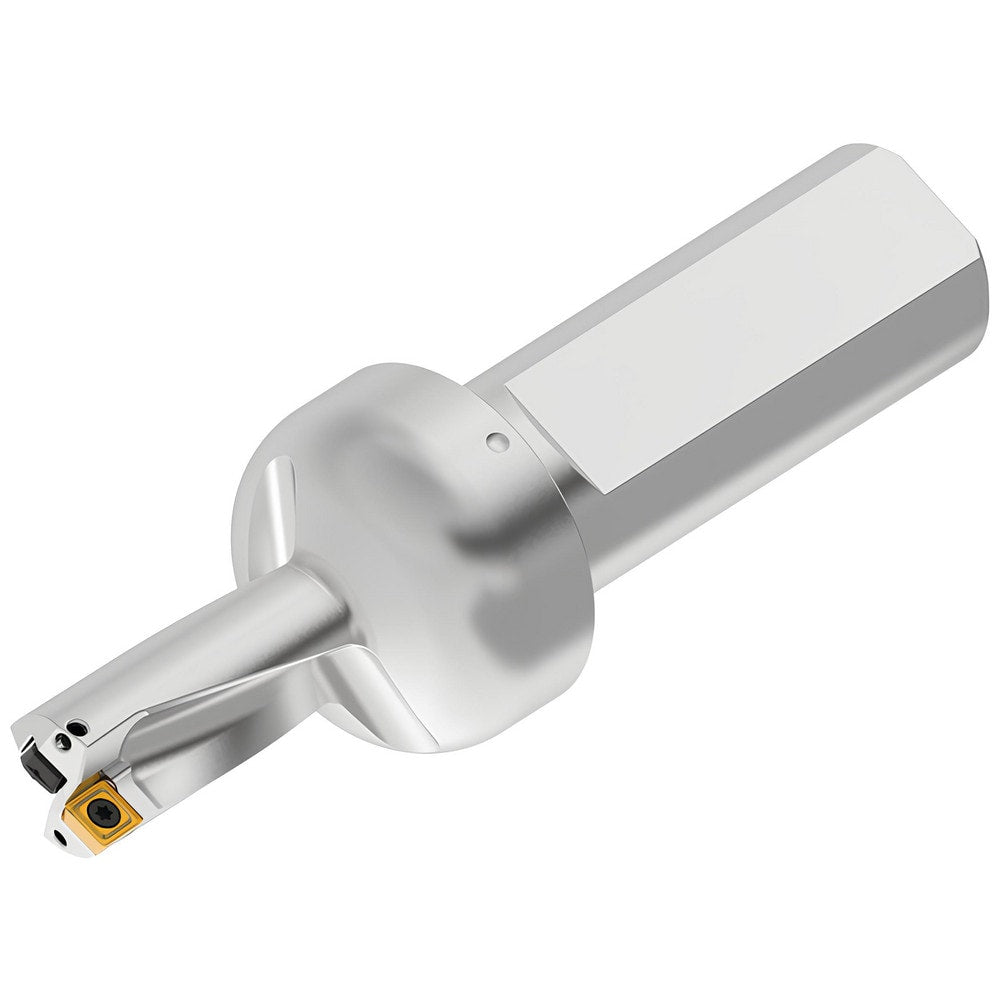

Indexable Insert Drill: DFPR120R2WB20M, 12.50 mm Max Dia, 24.00 mm Max Depth, 2xD, 20.00 mm Shank Dia
Item #: 04806584
Brand: Kennametal
Model #: 7034765
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 12.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Depth (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (mm) | 24.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 040204; 040203 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.7402 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 1.0630 |
| Flute Length (mm) | 24.00 |
| Body Length | 45.00 |
| Body Length (Decimal Inch) | 3.7402 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 4.6x2; 4.57x3.81 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR040203__I; DFPR040204__O |
| Collar Diameter (Decimal Inch) | 0.4512 |
| Collar Diameter (mm) | 11.46 |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Insert Lock Screw | M1.8-0.35x3.8T5 |
| Coolant Through | Yes |
