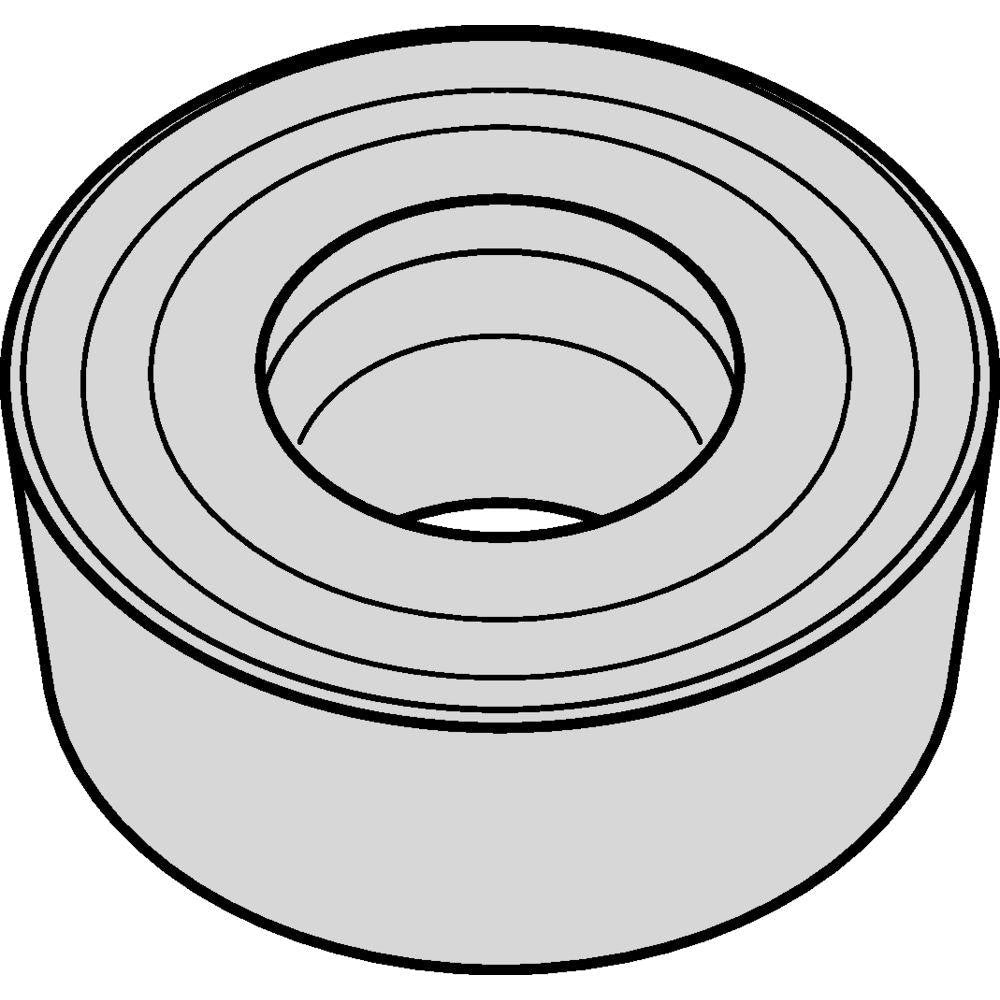

Turning Insert: RCMT0602M0 KCP25C, Carbide
Item #: 84696475
Brand: Kennametal
Model #: 7088780
Product Specifications
| ANSI Insert Code | RCMT |
| ISO Insert Code | RCMT |
| Relief Angle | 7.000 |
| Insert Style | RCMT |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Included Angle | 360.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | Screw-On Inserts |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Inscribed Circle (mm) | 6.00 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Side Clearance | Positive |
| Number Of Cutting Edges | 1 |
| Insert Shape Code | R |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2362 |
| Insert Length (mm) | 6.00 |
| Chip Breaker | None |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.2362 |
| Width (mm - 2 Decimals) | 6.00 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 602M0 |
| Country of Origin | UNITED STATES |
