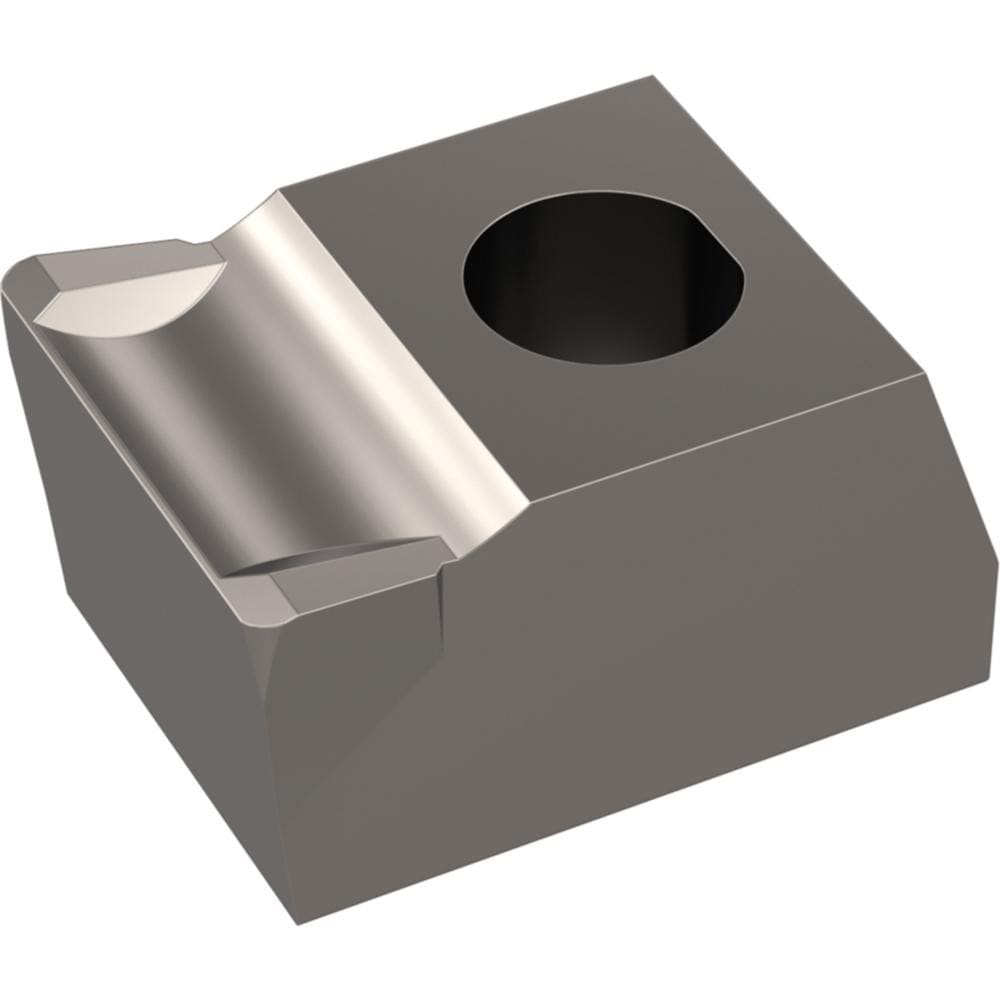

Brand: Widia / Part #: 6909027
Item #: 94500196
Brand: Widia
Model #: 6909027
Product Specifications
| Insert Style | LGN0 |
| Insert Size Code | 121R08 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Material Grade | WU35CT |
| Manufacturer Grade | WU35CT |
| Cutting Width (Decimal Inch) | 0.4800 |
| Maximum Depth of Cut (Decimal Inch) | 0.4800 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Inch) | 1/32 |
| Lead Angle | 90.000 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | External Grooving |
| Series | LGN0 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.6673 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | 123568120 |
| Iso Code | 123568120 |
| Maximum Corner Radius (Decimal Inch) | 0.0315 |
| External Relief Angle | 7 |
| Cut Condition | Stable |
| Inscribed Circle (Decimal Inch) | 0.4800 |
| Chip Breaker | LGN0 |
| Insert Seat Size | 12 |
| Style | Grooving |
| Full Radius | No |
| Coating Classification | Multi-Layered CVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.4800 |
| Included Angle Degree | 90 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Number Of Cutting Edges | 1 |
| Single Or Double End | Single |
