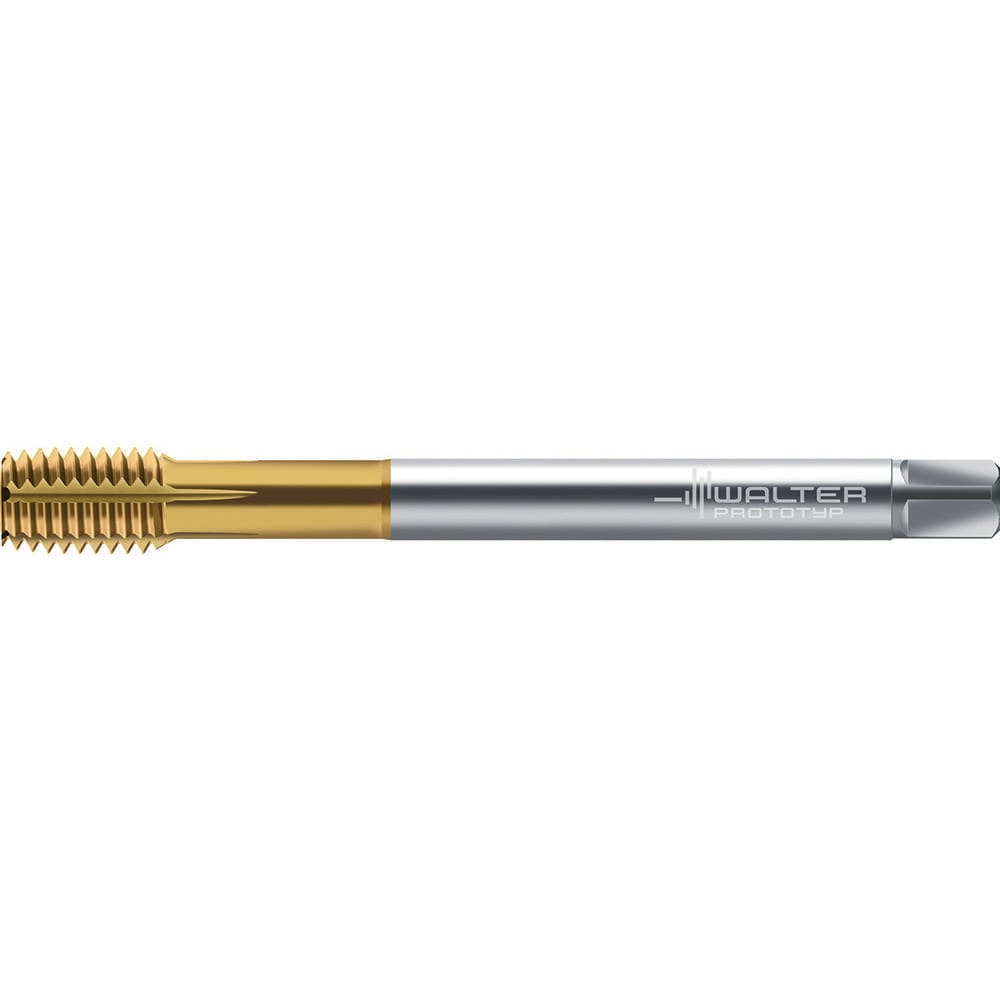

Thread Forming Tap: M12x1.75 Metric, 6HX Class of Fit, Semi-Bottoming Chamfer, High-Speed Steel-E, TIN Finish
Item #: 55405310
Brand: Walter-Prototyp
Model #: 7994928
Product Specifications
| Thread Size (mm) | M12x1.75 |
| Thread Standard | Metric |
| Chamfer | Semi-Bottoming |
| Chamfered Threads | 2-3P |
| Material | High-Speed Steel-E |
| Coating/Finish | TIN |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.0000 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 0.6299 |
| Thread Length (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.0000 |
| Square Length (Decimal Inch) | 0.3937 |
| Square Length (mm) | 10.00 |
| Application | Threading |
| Series | TC440 |
| Tapping Depth (Decimal Inch) | 3.2677 |
| Tapping Depth (mm) | 83.00 |
| Square Size (Decimal Inch) | 0.2756 |
| Square Size (mm) | 7.00 |
| Number Of Flutes | 5 |
| UNSPSC Code | 23241600 |
| Thread Size (mm) | M12x1.75 |
| Thread Standard | Metric |
| Chamfer | Semi-Bottoming |
| Chamfered Threads | 2-3P |
| Material | High-Speed Steel-E |
| Coating/Finish | TIN |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.0000 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 0.6299 |
| Thread Length (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.0000 |
| Square Length (Decimal Inch) | 0.3937 |
| Square Length (mm) | 10.00 |
| Application | Threading |
| Series | TC440 |
| Tapping Depth (Decimal Inch) | 3.2677 |
| Tapping Depth (mm) | 83.00 |
| Square Size (Decimal Inch) | 0.2756 |
| Square Size (mm) | 7.00 |
| Number Of Flutes | 5 |
| UNSPSC Code | 23241600 |
| MSC Part # | 55405310 |
| Mfr Part # | 7994928 |
| Country of Origin Country of Origin is subject to change | Germany |
