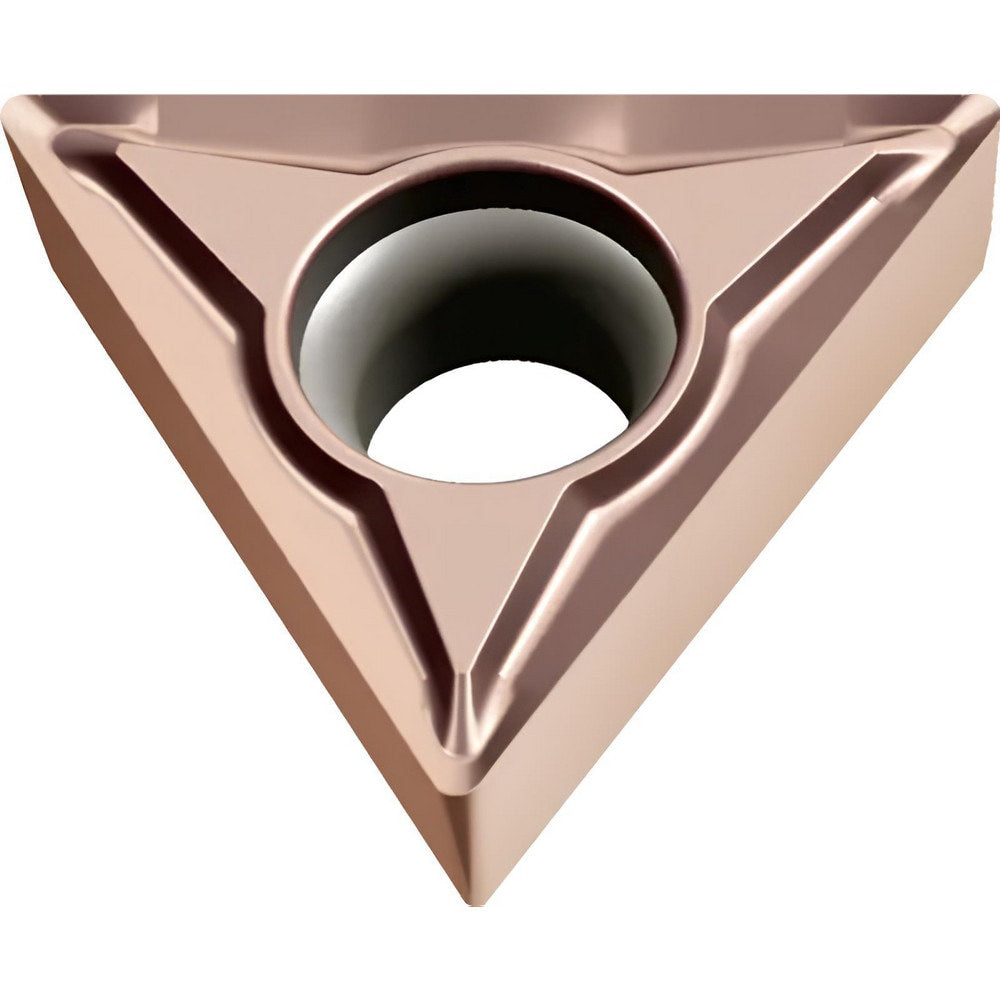

Boring Inserts; Insert Style: TCGT; Insert Size Code: 1.21.21; Insert Material: Cermet; Material Grade: K10, M10, P10; Manufacturer Grade: WEP10C; Inscribed Circle (Inch): 5/32
Item #: 17771874
Brand: Walter
Model #: 7780045
Product Specifications
| Insert Style | TCGT |
| Insert Size Code | 1.21.21 |
| Insert Material | Cermet |
| Material Grade | K10; M10; P10 |
| Manufacturer Grade | WEP10C |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0850 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.15 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.37 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | FP2 |
| Series | TCGT-FP2 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | TCGT06T104M-FP2 WEP10C |
| Standards | ISO; ANSI |
| Rake Angle | 18 |
| Manufacturers Catalog Number | 7780045 |
| Length (Decimal Inch - 4 Decimals) | 0.2610 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.261 |
| Coating/Finish | TiCN; TiAlN |
| UNSPSC Code | 23242105 |
| Length (mm) | 6.87 |
| Maximum Depth of Cut (Decimal Inch) | 0.0869 |
