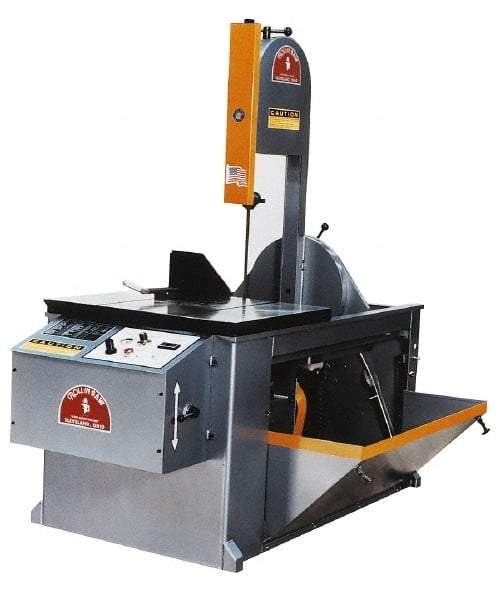

Roll-In Saw - 14 Inch Throat Capacity, Vertical Bandsaw - 70 to 400 SFPM, 2 HP, Three Phase
Item #: 09519265
Brand: Roll-In Saw
Model #: TF1420
Exact Tooling IR#: 04
Features and Benefits
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Throat Capacity (Inch) | 14 |
| Height Capacity (Inch) | 20 |
| Phase | 3 |
| Blade Width (Inch) | 1 |
| Blade Speeds (SFPM) | 70 to 400 |
| Blade Length (Decimal Inch) | 155.0000 |
| Blade Length (Inch) | 155 |
| Blade Length (Feet) | 12.92 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Wheel Diameter (Inch) | 14 |
| Table Length (Inch) | 31-1/2 |
| Table Width (Inch) | 25-1/2 |
| Floor to Table Height (Inch) | 37 |
| Table Tilt Right (Degrees) | 45.00 |
| Horsepower (HP) | 2.00 |
| Voltage | 230/440 |
| Overall Height (Inch) | 80 |
