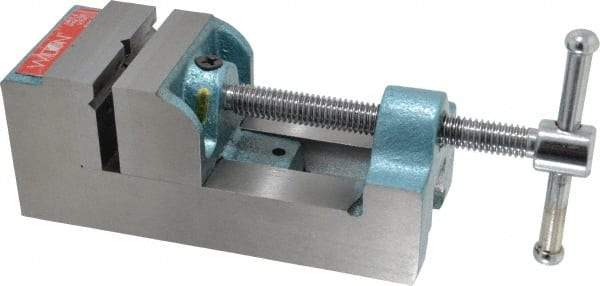

Wilton - 2-9/16" Jaw Opening Capacity x 1-1/2" Throat Depth, Horizontal Drill Press Vise - 2-1/2" Wide Jaw, Stationary Base, Standard Speed, 8-13/64" OAL x 3-3/4" Overall Height, Cast Iron
Item #: 09502709
Brand: Wilton
Model #: 12800
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 2-1/2 |
| Jaw Opening Capacity (Inch) | 2-9/16 |
| Jaw Opening Capacity (Decimal Inch) | 2.5625 |
| Throat Depth (Inch) | 1-1/2 |
| Throat Depth (Decimal Inch) | 1.5000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 8-13/64 |
| Overall Length (Decimal Inch) | 8.2031 |
| Overall Height (Inch) | 3-3/4 |
| Overall Height (Decimal Inch) | 3.7000 |
| Overall Width (Decimal Inch) | 3.6000 |
| Vise Material | Cast Iron |
| Model Number | 25 |
| Jaw Style | V-Groove |
