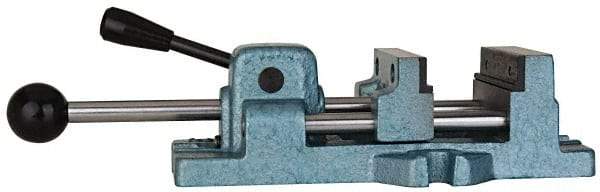

Wilton - 4-11/16" Jaw Opening Capacity x 1-5/16" Throat Depth, Horizontal Drill Press Vise - 4" Wide x 1-5/16" High Jaw, Stationary Base, Standard Speed, 14-1/2" OAL x 4.3" Overall Height, Cast Iron
Item #: 09502642
Brand: Wilton
Model #: 13401
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 4-11/16 |
| Jaw Opening Capacity (Decimal Inch) | 4.6875 |
| Throat Depth (Inch) | 1-5/16 |
| Throat Depth (Decimal Inch) | 1.3125 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 14-1/2 |
| Overall Length (Decimal Inch) | 14.5000 |
| Overall Height (Decimal Inch) | 4.3000 |
| Overall Width (Decimal Inch) | 7.2000 |
| Vise Material | Cast Iron |
| Model Number | 1204 |
| Jaw Height (Inch) | 1-5/16 |
