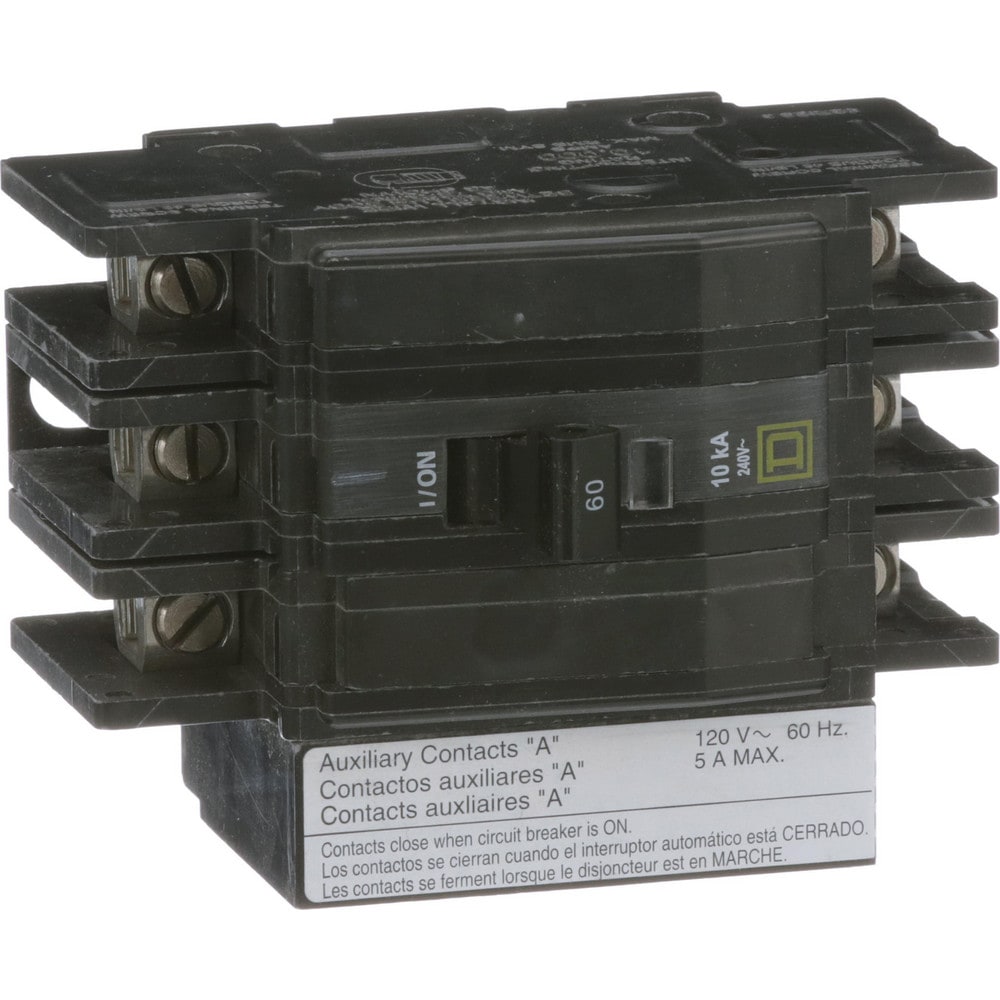

Circuit Breakers; Circuit Breaker Type: Miniature Circuit Breaker; Amperage: 60; Voltage: 240V; Wire Size (AWG): 14-2; Number Of Poles: 3; Tripping Mechanism: Thermal-Magnetic; Terminal Connection Type: Box Lugs; Phase: Single to Three
Item #: 93374254
Brand: Square D
Model #: QOU3601200
Product Specifications
| Circuit Breaker Type | Miniature Circuit Breaker |
| Amperage | 60 |
| Voltage | 240V |
| Wire Size (AWG) | 14-2 |
| Number Of Poles | 3 |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Box Lugs |
| Phase | Single to Three |
| Breaking Capacity | 10 kA |
| Mount Type | Unit |
| Maximum Operating Temperature F | 140.000 |
| Minimum Operating Temperature F | 14.000 |
| Overall Length (Decimal Inch) | 2.9500 |
| Overall Width (Decimal Inch - 4 Decimals) | 3.0000 |
| Overall Height (Decimal Inch) | 4.0500 |
| Standards | CSA; UL Listed; IEC |
| UNSPSC Code | 39121603 |
