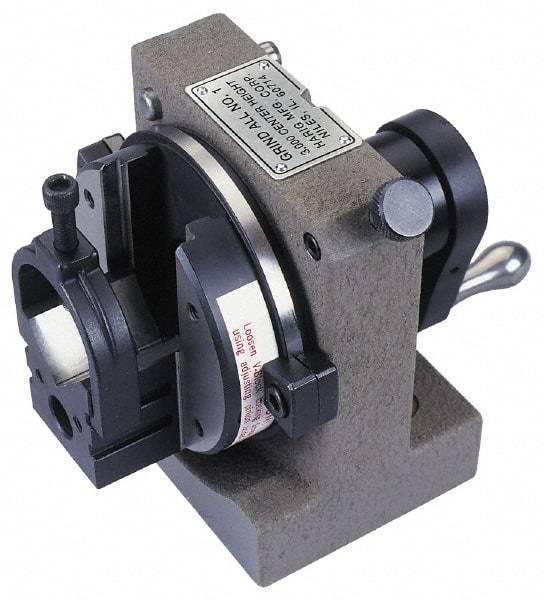

Harig - 24 Position, V-Block Grinding Fixture & Indexing Spacer - 3" High Centerline, 1-3/16" Spacer Through Hole, 7-9/32" OAL, 5-7/16" Overall Height
Item #: 09450552
Brand: Harig
Model #: 010-100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | V-Block Fixture |
| Includes Chuck | No |
| Number of Indexing Increments | 24 |
| Centerline Height (Decimal Inch) | 3.0000 |
| Centerline Height (Inch) | 3 |
| V-Block Capacity (Inch) | 1-1/4 |
| Spacer Through Hole Size (Inch) | 1-3/16 |
| Indexing Accuracy (sec.) | ±10 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0001 |
| Parallelism Over Face (Decimal Inch) | 0.0001 |
| Overall Length (Inch) | 7-9/32 |
| Overall Height (Inch) | 5-7/16 |
