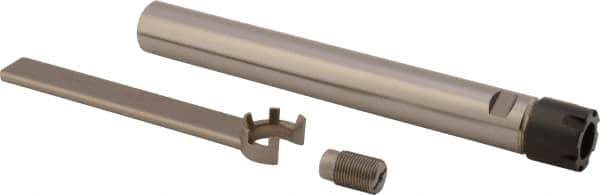

Kennametal - 0.02" to 13/32" Capacity, 42mm Projection, Straight Shank, ER16 Collet Chuck - 182mm OAL, 20mm Shank Diam
Item #: 09201427
Brand: Kennametal
Model #: 1125015
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Projection (mm) | 42.00 |
| Projection (Decimal Inch) | 1.6535 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 10.32 |
| Maximum Collet Capacity (Inch) | 13/32 |
| Maximum Collet Capacity (Decimal Inch) | 0.4063 |
| Overall Length (mm) | 182.00 |
| Overall Length (Decimal Inch) | 7.1654 |
| Actuator Type | Wrench |
| Shank Length (mm) | 140.00 |
| Hex Diameter (mm) | 22.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.8660 |
| Collet Nut Diameter (mm) | 22.00 |
