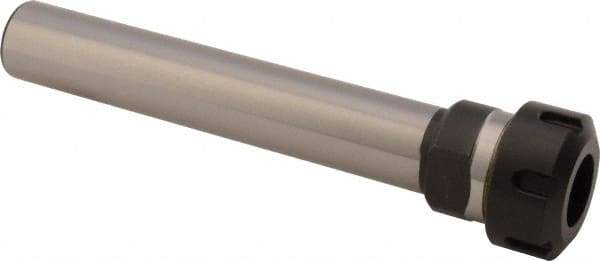

Kennametal - 1.02mm to 16mm Capacity, 1.81" Projection, Straight Shank, ER25 Collet Chuck - 190.5mm OAL, 1" Shank Diam
Item #: 09201401
Brand: Kennametal
Model #: 1021498
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Projection (Decimal Inch) | 1.8100 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0400 |
| Minimum Collet Capacity (mm) | 1.02 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6300 |
| Overall Length (mm) | 190.50 |
| Overall Length (Decimal Inch) | 7.5000 |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 5.6900 |
| Hex Diameter (Decimal Inch) | 1.6500 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.6540 |
| Collet Nut Diameter (mm) | 42.01 |
