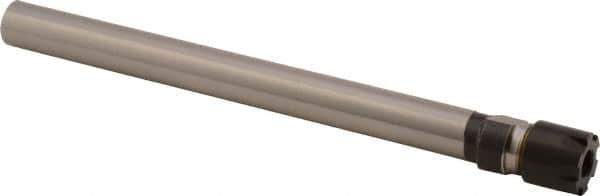

Kennametal - 0.51mm to 5.08mm Capacity, 0.85" Projection, Straight Shank, ER08 Collet Chuck - 127mm OAL, 3/8" Shank Diam
Item #: 09201369
Brand: Kennametal
Model #: 1021460
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER08 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/8 |
| Projection (Decimal Inch) | 0.8500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 5.08 |
| Maximum Collet Capacity (Decimal Inch) | 0.2000 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 4.1500 |
| Hex Diameter (Decimal Inch) | 0.4700 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.4720 |
| Collet Nut Diameter (mm) | 11.99 |
