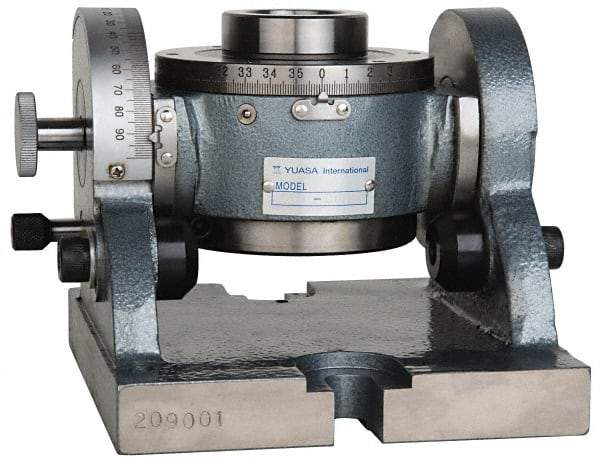

Yuasa - 24 Position, 4.01" Chuck, Universal Indexing Spacer - 3.34" High Centerline, 1-1/4" Chuck Through Hole, 6.69" Overall Height
Item #: 09151424
Brand: Yuasa
Model #: 550-009
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | Universal Indexing Fixture |
| Includes Chuck | No |
| Chuck Diameter (Inch) | 4 |
| Number of Indexing Increments | 24 |
| Centerline Height (Decimal Inch) | 3.3400 |
| Chuck Through Hole Size (mm) | 31.75 |
| Chuck Through Hole Size (Decimal Inch) | 1.2500 |
| Masking Plate Divisions | 2; 3; 4; 6; 8; 12 |
| Overall Height (Decimal Inch) | 6.6900 |
