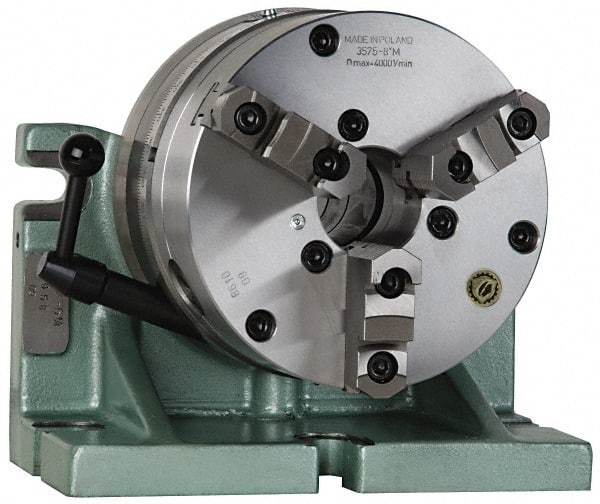

Bison - 360 Position, 12-1/2" Chuck, Super Indexing Spacer - 9.84" High Centerline, 1-1/2" Spacer Through Hole, 4.055" Chuck Through Hole, 21.85" OAL, 12.24" Overall Height
Item #: 09150988
Brand: Bison
Model #: 7-609-012
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | Super Spacer |
| Includes Chuck | Yes |
| Chuck Diameter (Inch) | 12-1/2 |
| Number of Indexing Increments | 360 |
| Centerline Height (Decimal Inch) | 9.8400 |
| Chuck Through Hole Size (Decimal Inch) | 4.0550 |
| Spacer Through Hole Size (Decimal Inch) | 1.4960 |
| Masking Plate Divisions | 2; 3; 4; 6; 8; 12; 24 |
| Face Plate Diameter (Decimal Inch) | 12.4000 |
| Indexing Accuracy (Minutes) | 2.00 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0008 |
| Concentricity of Chuck (Decimal Inch) | 0.0015 |
| Parallelism Over Face (Decimal Inch) | 0.0008 |
| Overall Length (Decimal Inch) | 21.8500 |
| Overall Height (Decimal Inch) | 12.2400 |
