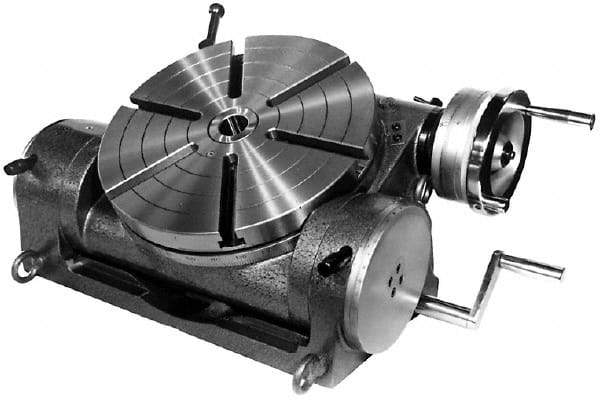

Yuasa - 12" Table Diam, Tilting Tilting Rotary Machining Table - 4MT Center Taper, 13.97mm T-Slot Width, 90:1 Gear Ratio
Item #: 09150756
Brand: Yuasa
Model #: 550-212
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Tilting |
| Tilting | Yes |
| Cross-Slide | No |
| Table Diameter (Inch) | 12 |
| Table Diameter (Decimal Inch) | 11.8125 |
| T-Slot Width (mm) | 13.97 |
| T-Slot Width (Decimal Inch) | 0.5500 |
| Center Taper | 4MT |
| Maximum Tilt Angle | 90.00 |
| Vernier Reading (sec.) | 10.00 |
| Gear Ratio | 90:1 |
| Indexing Accuracy (sec.) | 45.00 |
| Squareness - Clamp to Center Slot (mm) | 0.02 |
| Squareness - Clamp to Center Slot (Decimal Inch) | 0.0008 |
| Center Hole Concentricity (mm) | 0.01 |
| Center Hole Concentricity (Decimal Inch) | 0.0004 |
| Parallelism - Clamp Surface to Base (mm) | 0.02 |
| Parallelism - Clamp Surface to Base (Decimal Inch) | 0.0008 |
| Base Width (mm) | 299.97 |
| Base Width (Decimal Inch) | 11.8100 |
| Base Length (mm) | 447.04 |
| Base Length (Decimal Inch) | 17.6000 |
| Overall Height (mm) | 178.05 |
| Overall Height (Decimal Inch) | 7.0100 |
