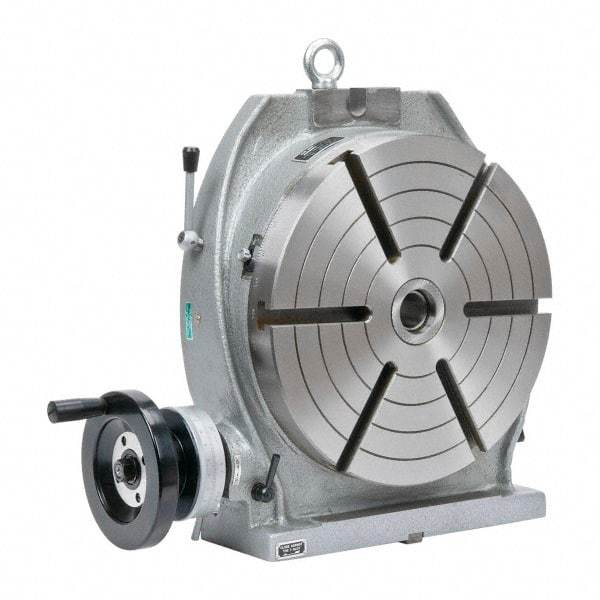

Phase II - 12" Table Diam, Horizontal & Vertical Rotary Machining Table - 8-1/4" Centerline Height, 4MT Center Taper, 0.545" T-Slot Width
Item #: 09102591
Brand: Phase II
Model #: 221-312
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Horizontal; Vertical |
| Tilting | No |
| Cross-Slide | No |
| Table Diameter (Inch) | 12 |
| T-Slot Width (Decimal Inch) | 0.5450 |
| Centerline Height (Decimal Inch) | 8.2500 |
| Center Taper | 4MT |
| Indexing Accuracy (sec.) | 45.00 |
| Squareness - Clamp to Center Slot (Decimal Inch) | 0.0008 |
| Squareness - Clamp to Angle Face (Decimal Inch) | 0.0004 |
| Center Hole Concentricity (Decimal Inch) | 0.0008 |
| Flatness of Surface (Decimal Inch) | 0.0006 |
| Parallelism - Clamp Surface to Base (Decimal Inch) | 0.0008 |
| Base Width (Decimal Inch) | 4.6400 |
| Base Length (Decimal Inch) | 12.6250 |
| Overall Height (Decimal Inch) | 16.1250 |
