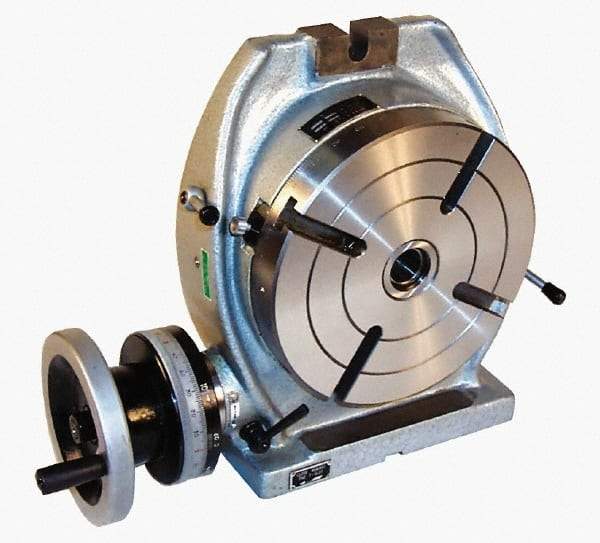

Phase II - 10" Table Diam, Horizontal & Vertical Rotary Machining Table - 6-3/4" Centerline Height, 3MT Center Taper, 0.465" T-Slot Width
Item #: 09102583
Brand: Phase II
Model #: 221-310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Horizontal; Vertical |
| Tilting | No |
| Cross-Slide | No |
| Table Diameter (Inch) | 10 |
| T-Slot Width (Decimal Inch) | 0.4650 |
| Centerline Height (Decimal Inch) | 6.7500 |
| Center Taper | 3MT |
| Indexing Accuracy (sec.) | 45.00 |
| Squareness - Clamp to Center Slot (Decimal Inch) | 0.0008 |
| Squareness - Clamp to Angle Face (Decimal Inch) | 0.0004 |
| Center Hole Concentricity (Decimal Inch) | 0.0008 |
| Flatness of Surface (Decimal Inch) | 0.0006 |
| Parallelism - Clamp Surface to Base (Decimal Inch) | 0.0008 |
| Base Width (Decimal Inch) | 4.1750 |
| Base Length (Decimal Inch) | 9.9600 |
| Overall Height (Decimal Inch) | 12.9000 |
