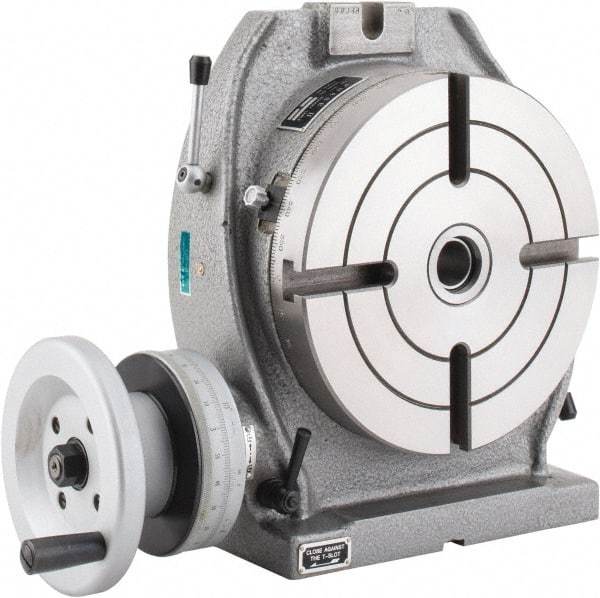

Phase II - 8" Table Diam, Horizontal & Vertical Rotary Machining Table - 5.985" Centerline Height, 3MT Center Taper, 0.465" T-Slot Width
Item #: 09102575
Brand: Phase II
Model #: 221-308
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Horizontal; Vertical |
| Tilting | No |
| Cross-Slide | No |
| Table Diameter (Inch) | 8 |
| T-Slot Width (Decimal Inch) | 0.4650 |
| Centerline Height (Decimal Inch) | 5.9850 |
| Center Taper | 3MT |
| Indexing Accuracy (sec.) | 80.00 |
| Squareness - Clamp to Center Slot (Decimal Inch) | 0.0008 |
| Squareness - Clamp to Angle Face (Decimal Inch) | 0.0004 |
| Center Hole Concentricity (Decimal Inch) | 0.0008 |
| Flatness of Surface (Decimal Inch) | 0.0006 |
| Parallelism - Clamp Surface to Base (Decimal Inch) | 0.0008 |
| Base Width (Decimal Inch) | 3.8800 |
| Base Length (Decimal Inch) | 8.2040 |
| Overall Height (Decimal Inch) | 11.2000 |
