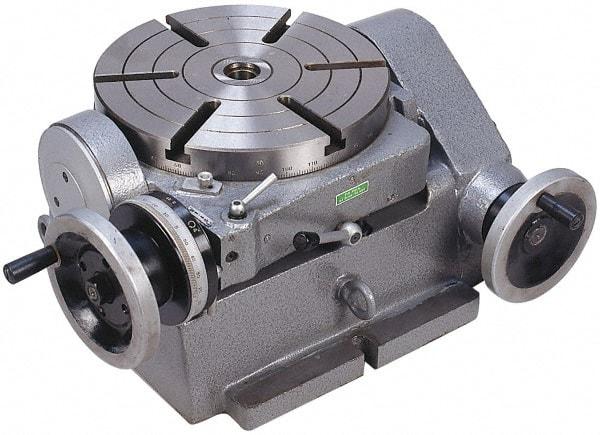

Phase II - 299.97mm Table Diam, Horizontal Tilting Rotary Machining Table - 168.91mm Centerline Height, 1.6" Bore Diam, 4MT Center Taper, 13.97mm T-Slot Width, 90:1 Gear Ratio
Item #: 09102336
Brand: Phase II
Model #: 222-412
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Horizontal |
| Tilting | Yes |
| Cross-Slide | No |
| Table Diameter (Decimal Inch) | 12.0000 |
| T-Slot Width (mm) | 13.97 |
| T-Slot Width (Decimal Inch) | 0.5500 |
| Centerline Height (mm) | 168.91 |
| Centerline Height (Decimal Inch) | 6.8900 |
| Center Bore Diameter (Decimal Inch) | 1.6000 |
| Center Taper | 4MT |
| Maximum Tilt Angle | 90.00 |
| Gear Ratio | 90:1 |
| Indexing Accuracy (sec.) | 45.00 |
| Base Width (mm) | 212.09 |
| Base Width (Decimal Inch) | 8.3500 |
| Base Length (mm) | 234.95 |
| Base Length (Decimal Inch) | 9.2500 |
| Overall Height (mm) | 551.00 |
| Overall Height (Decimal Inch) | 10.0400 |
