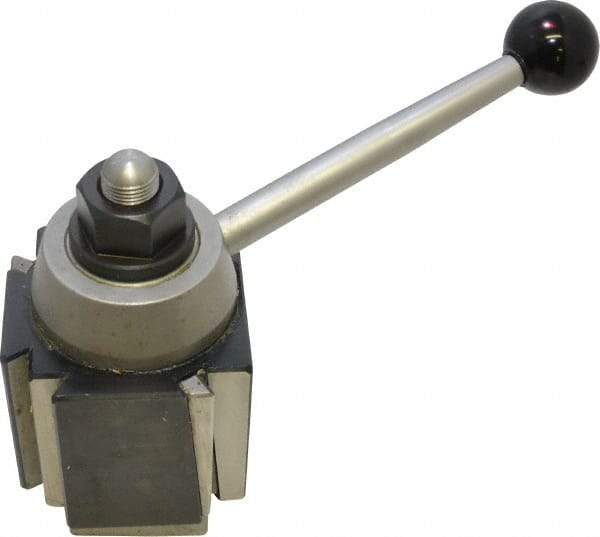

Aloris - 14 to 20 Inch Lathe Swing, Wedge Type Quick Change Tool Post - 6-1/4 Inch Tool Post Height, Series CA, 1-3/16 to 2-13/16 Inch Centerline Height Range, 7 Inch Overall Height, 24 Position
Item #: 09060047
Brand: Aloris
Model #: CA
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
| Product Specifications | |
|---|---|
| Type | Quick Change Tool Post - Wedge Type |
| Series | CA |
| Lathe Swing (Inch) | 14 to 20 |
| Through Coolant | No |
| Base Width (Inch) | 4 |
| Tool Post Height (Inch) | 6-1/4 |
| Centerline to Handle Edge (Inch) | 9 |
| Bolt Hole Diameter (Inch) | 7/8 |
| Overall Height (Inch) | 7 |
| Centerline to Body (Inch) | 2-1/8 |
| Minimum Centerline Height (Inch) | 1-3/16 |
| Maximum Centerline Height (Inch) | 2-13/16 |
| Body Height (Inch) | 3-5/8 |
| Number of Positions | 24 |
| Repeatability (Decimal Inch) | 0.000050 |
| Includes | Mounting Wrench |
