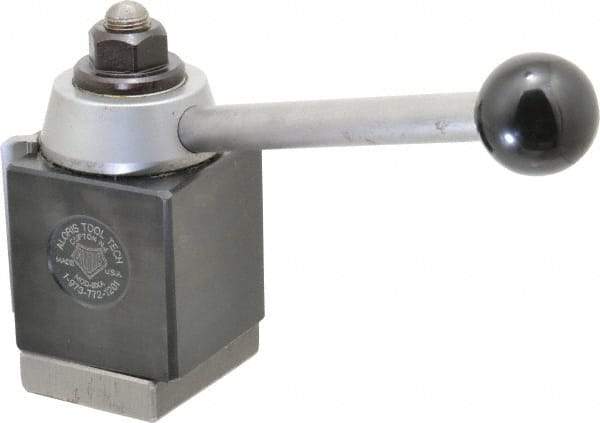

Aloris - 10 to 15 Inch Lathe Swing, Wedge Type Quick Change Tool Post - 4-5/8 Inch Tool Post Height, Series BXA, 3/4 to 2-1/8 Inch Centerline Height Range, 5-9/16 Inch Overall Height, 24 Position
Item #: 09060021
Brand: Aloris
Model #: BXA
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
| Product Specifications | |
|---|---|
| Type | Quick Change Tool Post - Wedge Type |
| Series | BXA |
| Lathe Swing (Inch) | 10 to 15 |
| Through Coolant | No |
| Base Width (Inch) | 3 |
| Tool Post Height (Inch) | 4-5/8 |
| Centerline to Handle Edge (Inch) | 7-5/16 |
| Bolt Hole Diameter (Inch) | 5/8 |
| Overall Height (Inch) | 5-9/16 |
| Centerline to Body (Inch) | 1-5/8 |
| Minimum Centerline Height (Inch) | 3/4 |
| Maximum Centerline Height (Inch) | 2-1/8 |
| Body Height (Inch) | 2-3/4 |
| Number of Positions | 24 |
| Repeatability (Decimal Inch) | 0.000050 |
| Includes | Mounting Wrench |
