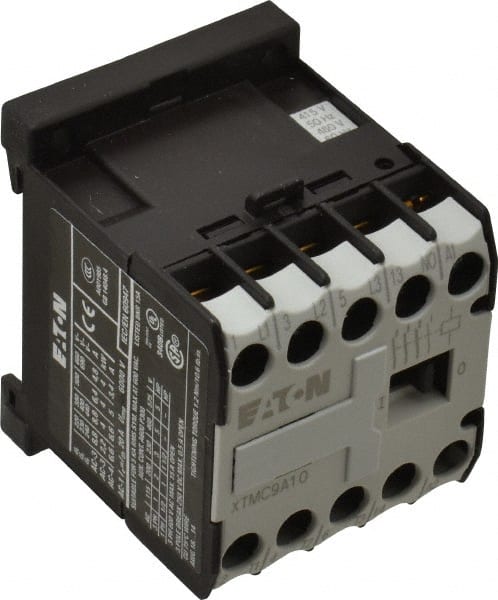

Eaton Cutler-Hammer - 3 Pole, 415 Coil VAC at 50 Hz and 480 Coil VAC at 60 Hz, Nonreversible Open Enclosure IEC Contactor
Item #: 08805277
Brand: Eaton Cutler-Hammer
Model #: XTMC9A10C
Product Specifications
| Number of Poles | 3 |
| Coil Voltage | 415 VAC @ 50 Hz; 480 VAC @ 60 Hz |
| Action | NonReversible |
| Horsepower at 1 Phase | 0.5 @ 115 V; 1 @ 200 V; 1.5 @ 230 V |
| Horsepower at 3 Phase | 2 @ 200 V; 3 @ 230 V; 5 @ 460 V; 5 @ 575 V |
| Auxiliary Contacts | NO |
| Enclosure Type | Open |
| Overall Height (mm) | 58 |
| Overall Height (Decimal Inch) | 2.2800 |
| Overall Width (mm) | 45 |
| Overall Width (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 83 |
| Overall Depth (Decimal Inch) | 3.2700 |
| Inductive Load Rating (A) | 8.80 |
| Resistive Load Rating (A) | 20 |
| Standards Met | ATEX; CCC; CE Marked; CSA; EN/IEC 60947; UL |
