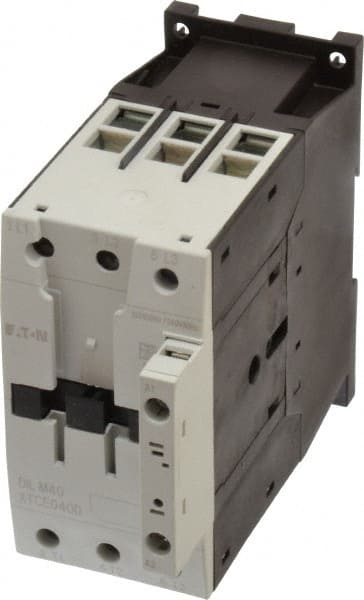

Eaton Cutler-Hammer - 3 Pole, 220 Coil VAC at 50 Hz and 240 Coil VAC at 60 Hz, 63 Amp, Nonreversible Open Enclosure IEC Contactor
Item #: 08804882
Brand: Eaton Cutler-Hammer
Model #: XTCE040D00B
Product Specifications
| Number of Poles | 3 |
| Coil Voltage | 220 VAC @ 50 Hz; 240 VAC @ 60 Hz |
| Amperage | 63 |
| Action | NonReversible |
| Horsepower at 1 Phase | 3 @ 115 V; 5 @ 200 V; 7.5 @ 230 V |
| Horsepower at 3 Phase | 10 @ 200 V; 15 @ 230 V; 30 @ 460 V; 40 @ 575 V |
| Enclosure Type | Open |
| Overall Height (mm) | 104 |
| Overall Height (Decimal Inch) | 4.0900 |
| Overall Width (mm) | 55 |
| Overall Width (Decimal Inch) | 2.1700 |
| Overall Depth (mm) | 146.80 |
| Overall Depth (Decimal Inch) | 5.7800 |
| Inductive Load Rating (A) | 40 |
| Resistive Load Rating (A) | 60 |
| Standards Met | ATEX; CCC; CE Marked; CSA; EN/IEC 60947; RoHS Compliant; UL |
