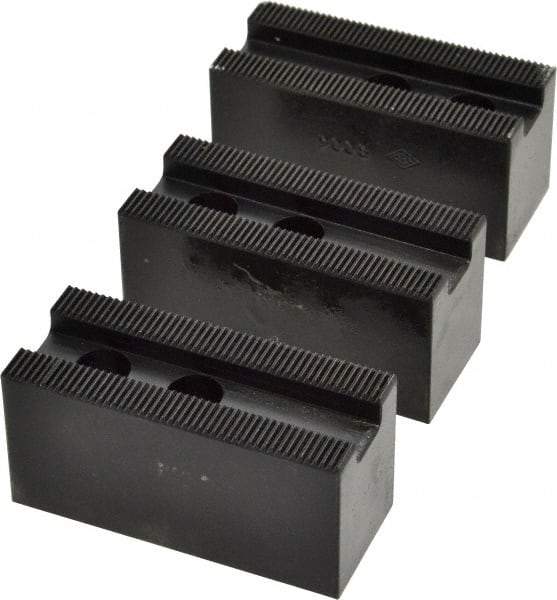

Value Collection - 6" Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 0.7874" Btw Mount Hole Ctrs, 1.181mm Long x 30mm Wide x 1-3/8" High, 0.4724" Groove, 10mm Fastener
Item #: 08615866
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Minimum Compatible Chuck Diameter (Inch) | 6 |
| Overall Height (mm) | 35.00 |
| Overall Height (Inch) | 1-3/8 |
| Overall Height (Decimal Inch) | 1.3770 |
| Groove Width (mm) | 12.00 |
| Groove Width (Decimal Inch) | 0.4724 |
| Distance Between Mount Hole Centers (mm) | 20.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.7874 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 10 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 30.00 |
| Overall Width/Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.1810 |
| Overall Length (mm) | 72.00 |
