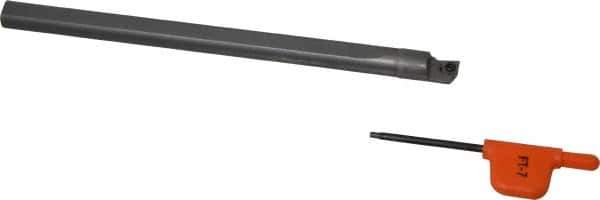

Kennametal - 0.415" Min Bore Diam, 6" OAL, 3/8" Shank Diam, GCBIW Indexable Boring Bar - 3-3/4" Max Bore Depth, WP.. Insert, Screw Holding Method
Item #: 08614901
Brand: Kennametal
Model #: 1950388
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GCBIW |
| Series | Q |
| Minimum Bore Diameter (Decimal Inch) | 0.4150 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 3.7500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | WP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.2110 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Complete Insert Compatibility | WPGT 220.2 CG5; WPGT 220.2 CM1; WPGT 220.5 CG5; WPGT 220.5 CM1; WPGT 221 CG5; WPGT 221 CM1; WPMT 221 GP-ALO9; WPMT 221 GP-CG55 |
| Toolholder Material | Carbide (Shank), Steel (Head) |
