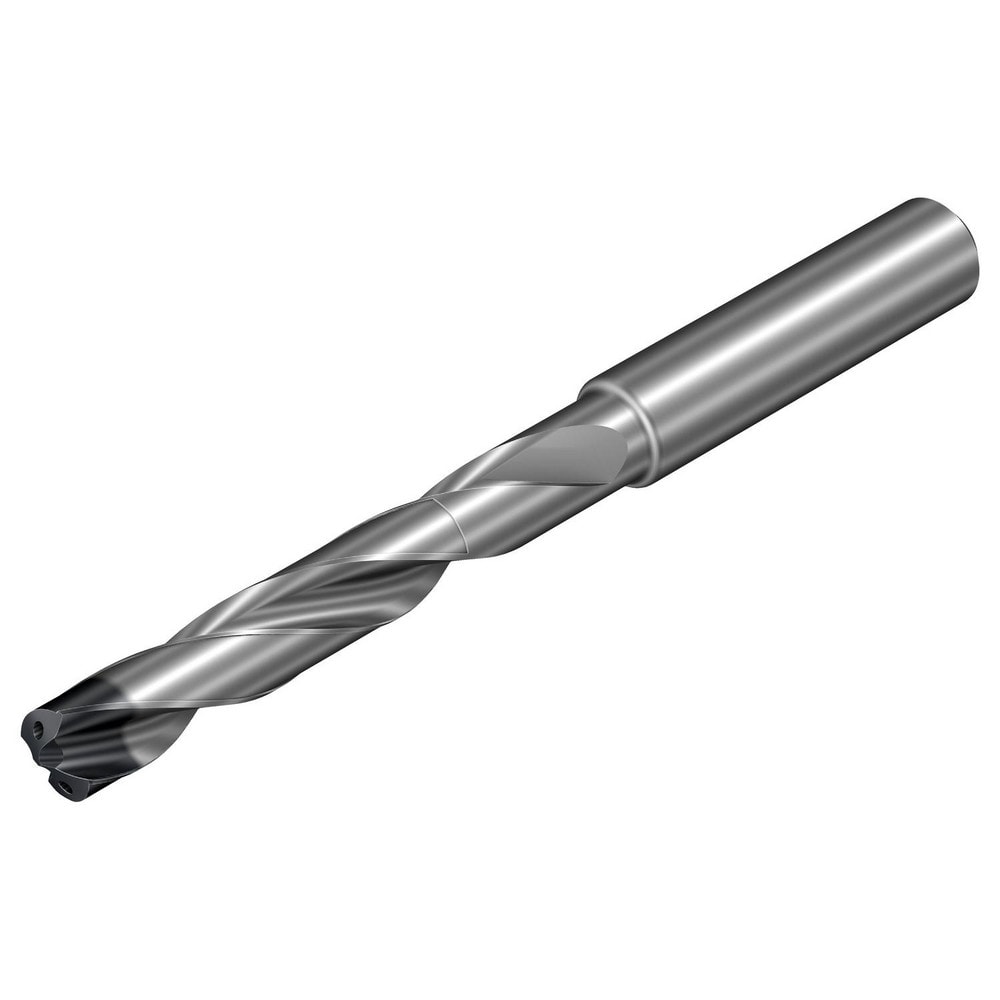

Taper Length Drill: 0.3701" Dia, 140 deg, Solid Carbide
Item #: 01163823
Brand: Sandvik Coromant
Model #: 8421293
Product Specifications
| Drill Bit Size (mm) | 9.40 |
| Drill Bit Size (Decimal Inch) | 0.3701 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Threaded Shank | No |
| Shank Diameter (mm) | 10.0000 |
| Flute Length (Decimal Inch) | 4.1732 |
| Flute Length x Diamter Ratio | 8xD |
| Overall Length (mm) | 152 |
| Overall Length (Decimal Inch) | 6 |
| Material Application3 | Superalloys & Titanium |
| Series | CoroDrill 860 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 3.0280 |
| Maximum Drilling Depth (mm) | 76.91 |
| Shank Length (Decimal Inch) | 1.8111 |
| Shank Length (mm) | 46.000 |
| Drill Point Length (Decimal Inch) | 0.0673 |
| Flute Length (mm) | 106.00 |
| Drill Point Length (mm) | 1.71 |
| Drill Bit Diameter Tolerance | h6 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
