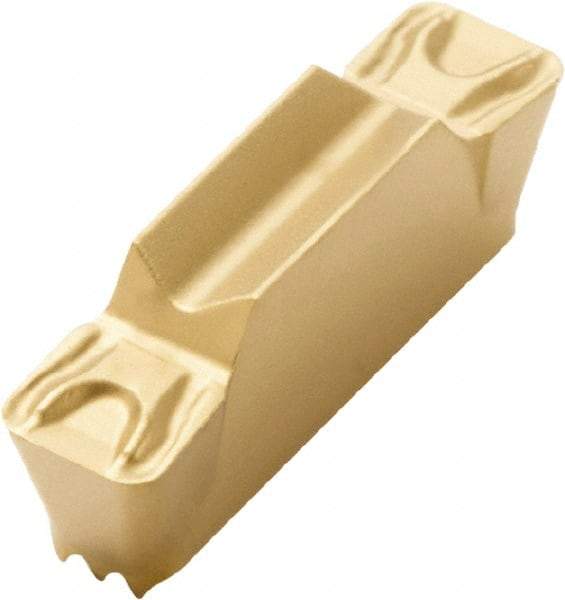

Seco - LCMF, FT, CP500 Grade, Double End Multi-Directional Turning Insert - TiAlN, TiN Coated
Item #: 08603490
Brand: Seco
Model #: 88037
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Cutting Width (Decimal Inch) | 0.3940 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | .047 |
| Single or Double End | Double |
| Chipbreaker | FT |
| Full Radius | No |
| Series | MDT |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
