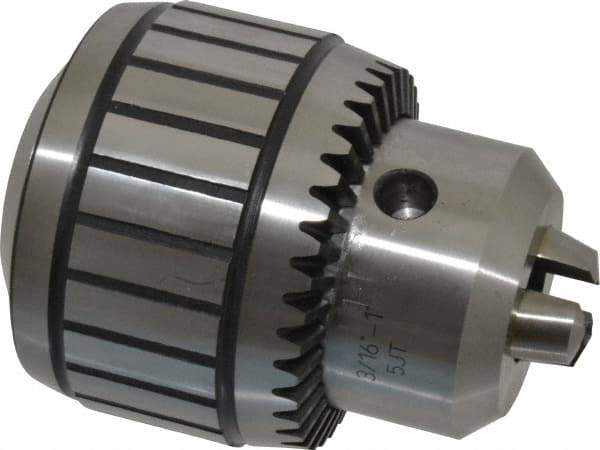

Accupro - JT5, 13/64 to 1" Capacity, Tapered Mount Steel Drill Chuck - Keyed, 93mm Sleeve Diam, 112mm Open Length
Item #: 08600702
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 25.40 |
| Maximum Drill Chuck Capacity (Inch) | 1 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 1.0000 |
| Minimum Drill Chuck Capacity (mm) | 5.00 |
| Minimum Drill Chuck Capacity (Inch) | 13/64 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.1968 |
| Mount Type | Tapered Mount |
| Mounting Size | JT5 |
| Key Style | Keyed |
| Bearing Type | Ball Bearing |
| Material | Steel |
| Closed Length (mm) | 147.00 |
| Open Length (mm) | 112.00 |
| Sleeve Diameter (mm) | 93.00 |
| Key Number | K5 |
