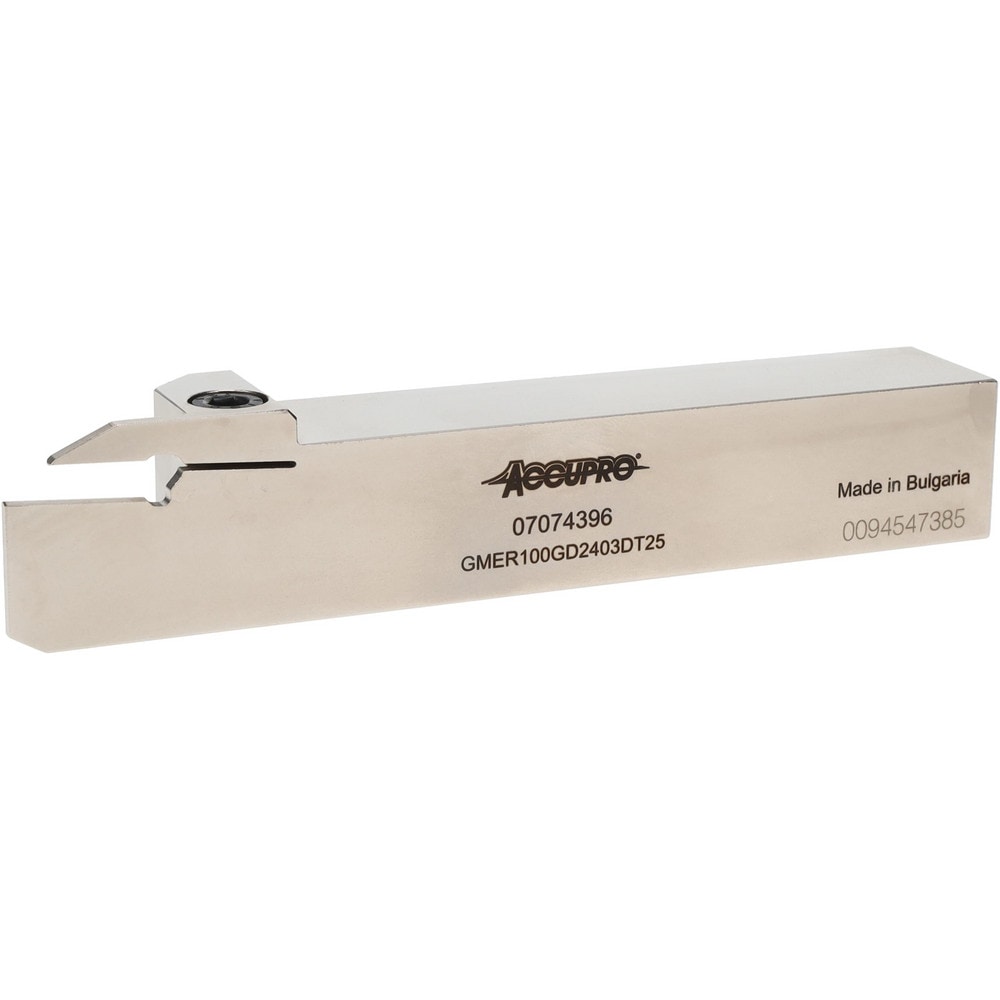

Indexable Grooving Toolholder: GMER100GD2403DT25, 0.1181" Max Groove Width
Item #: 07074396
Brand: Accupro
Model #: 07074396
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9853 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | GMER |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 3 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | CI |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6 |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
