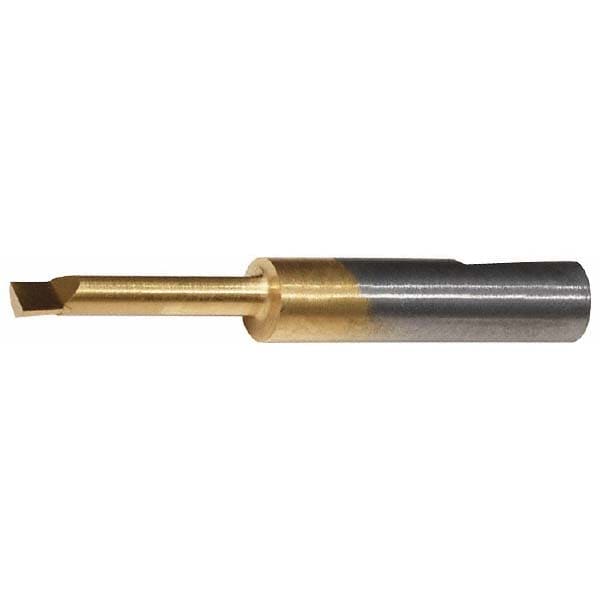

Brand: Widia / Part #: 2836627
Item #: 70740089
Brand: Widia
Model #: 2836627
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.0620 |
| Material | Solid Carbide |
| Material Grade | Submicron |
| Maximum Bore Depth (Decimal Inch) | 0.3120 |
| Shank Diameter (Decimal Inch) | 1/16 |
| Finish Coating | Titanium Nitride |
| Corner Radius (Decimal Inch) | 0.0000 |
| Bar End Angle | 2 |
| Manufacturer Grade | CG5 |
| Series | ABD Series |
| Coating Process | PVD |
| Manufacturers Catalog Number | ABD06312R |
| Overall Length (Decimal Inch) | 0.9620 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
