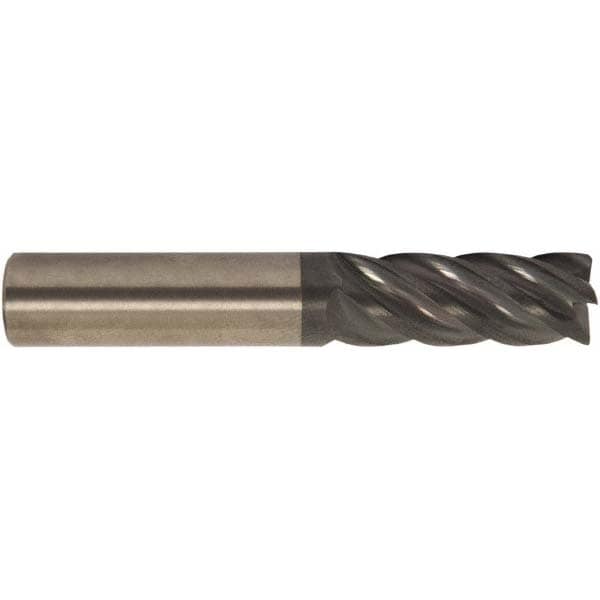

Square End Mill: 1-1/4" Dia, 2-5/8" LOC, 5 Flute, Solid Carbide
Item #: 42528141
Brand: Accupro
Model #: 311977
Product Specifications
| Mill Diameter (Fractional Inch) | 1-1/4 |
| Mill Diameter (mm) | 25.40 |
| Flute Type | Spiral |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 2-5/8 |
| Length of Cut (mm) | 66.68 |
| Coating/Finish | AlTiCrN |
| Centercutting | Yes |
| End Type | Single |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Diameter (Inch) | 1-1/4 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Length of Cut (Decimal Inch) | 2.6250 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 38 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | HS |
| UNSPSC Code | 27112803 |
