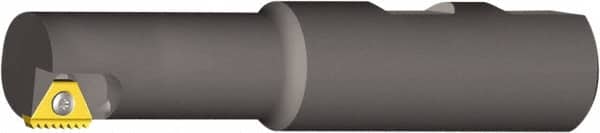

0.669″ Diam, 0.87″ Max Hole Depth, 5/8″ Shank Diam, Internal/External Indexable Thread Mill Takes 1 Insert, 3/8″ Insert Size, 3 Insert Style, TMC Toolholder Style, 3.543″ OAL, Through Coolant
Item #: 08171787
Brand: Vargus
Model #: 67613
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6690 |
| Cutting Diameter | 0.6690 in |
| Maximum Hole Depth (Decimal Inch) | 0.8700 |
| Insert Style | 3 |
| Insert Size (Decimal Inch) | 0.3750 |
| Toolholder Style | TMC |
| Overall Length (Decimal Inch) | 3.5430 |
| Number of Threading Inserts | 1 |
| Toolholder Material | Carbide |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.5400 |
